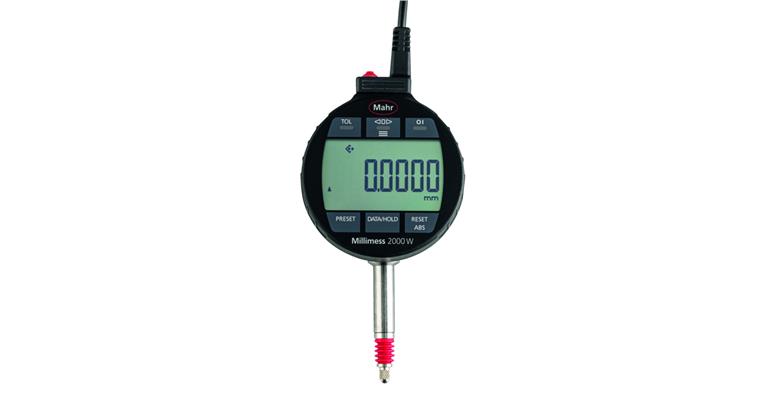

Digitaler Feinzeiger Millimess 2000W

Digitaler Feinzeiger Millimess 2000W

Digitaler Feinzeiger Millimess 2000W
Item no: 1033075 101

Online price:

Still in stock: 2

Application
For measuring lengths. Ideal for comparative measuring instruments and flatness and straightness measurements.

Execution
  • For static measurements
  • High-contrast LCD display
  • Operating and display elements can be rotated through 280°
  • Clamping shaft and measuring pin made of hardened stainless steel
  • Linearised inductive absolute measuring system
  • Replaceable measuring force spring
  • Adjustable lower end stop
  • Clear tolerance thresholds in scale display and coloured LED signals (red, green, yellow) for classification of measured values
    - with warning threshold input: Go/no-go/warning threshold
    - without warning threshold input: Go/no-go/rework
  • Functions: ON/OFF, mm/inch, RESET (sets the display to zero), PRESET (measurement presetting), ABS (reference to electric zero point), digit increment can be changed, TOL (tolerance and warning threshold input), factor (adjustable), reverse counting direction, HOLD (measured value storage), LOCK function (keypad lock), DATA (data transfer), bi-directional data interface (external remote control, query and option to input characteristic values and set specific function locks using MarCom software)

Advantage
  • Hardened glass front with touch operating panels
  • Excellent resistance against dust, coolants and lubricants
  • Wear-free touch control buttons
  • Measuring pin precision ball guide for small reversal range

Delivery
1x dial indicator
1x operating instructions
1x USB data and charging cable
1x plug-in power supply for USB
1x rubber bellows
1x screwdriver for pre-stroke adjustment
1x case


Brand: MAHR
Length measuring range: 1 mm
Type: 2000 W
Digit increment: 1 µm
Repeat accuracy: 0,1 µm
Data transmission type: Cable
Min./max. measurement force: 0.8-1 N
Digit height: 11,5 mm
Shank diameter: 8 mm
Shaft length: 28 mm
Error limit: 0,3 µm
Free stroke: 2,5 mm
Dynamic measurement: No
Reversal error: 0,3 µm
IP protection class: IP 64
Rotating housing: Yes
Calibration Group: K
Display: Digital
Other standard: Company standard

Manufacturer part no.: 4346700

EAN no.: 4059192064303

Product Datasheet
