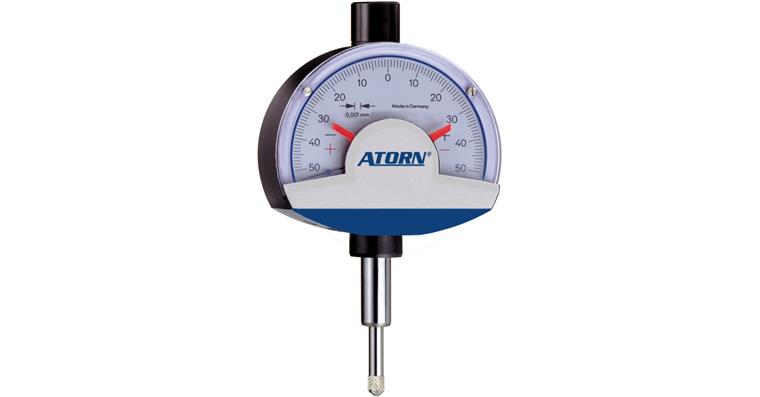

ATORN precision pointer IP 53 0.001 mm scale interval, 0.1 mm measuring range

ATORN precision pointer IP 53 0.001 mm scale interval, 0.1 mm measuring range

ATORN precision pointer IP 53 0.001 mm scale interval, 0.1 mm measuring range
Item no: 1033074 102

Online price:

Available in 6-8 working days.

Application
For measuring lengths. Ideal for measuring instruments and flatness and straightness measurements

Execution
  • Impact-resistant
  • Precision-guided measuring pin
  • Connection for wire lifter
  • Pointer fine adjustment
  • Adjustable tolerance marks
  • Measuring mechanism on ruby bearings
  • suitable for internal precision measuring instruments
  • With rubber bellows

Delivery
In case


Scale value: 0,001 mm
Error limit: 1,2 µm
Shock protection: Yes
IP protection class: IP 53
Length measuring range: 0,1 mm
DIN: 879
Measurement force: 1 N
With free stroke: Yes

ATORN-No.: 30390017

EAN no.: 4050293156973

Product Datasheet
