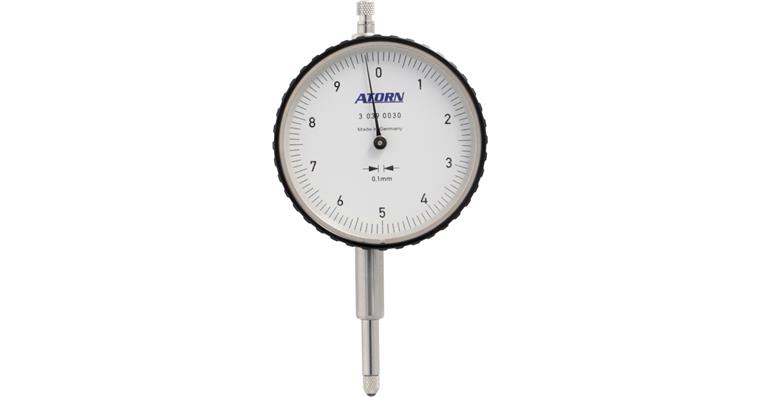

ATORN dial gauge w.o. shock protection scale interval 0.1 mm meas. range 10 mm

ATORN dial gauge w.o. shock protection scale interval 0.1 mm meas. range 10 mm

ATORN dial gauge w.o. shock protection scale interval 0.1 mm meas. range 10 mm
Item no: 1033024 601

Online price:

Available in 6-8 working days.

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements.

Execution
  • Measuring pin and clamping shank are made of durable stainless steel
  • No tolerance marks as standard
  • The dial gauges feature a clamping shank that has a lateral offset of 3.5 mm.
  • Without revolution counter

Advantage
Gauge slide with ceramic ball (minimum wear, not electrically conductive)

Delivery
in a case


Brand: ATORN
Length measuring range: 10 mm
Scale value: 0,1 mm
Error limit: 50 µm
Measurement travel of one pointer revolution: 10 mm
Outer diameter: 58 mm
Shock protection: No
Material of outer ring: Metal
Rotating housing: No
IP protection class: IP 40
Measurement force: 0,7 N
DIN: 878

ATORN-No.: 30390030

EAN no.: 4066107038649
