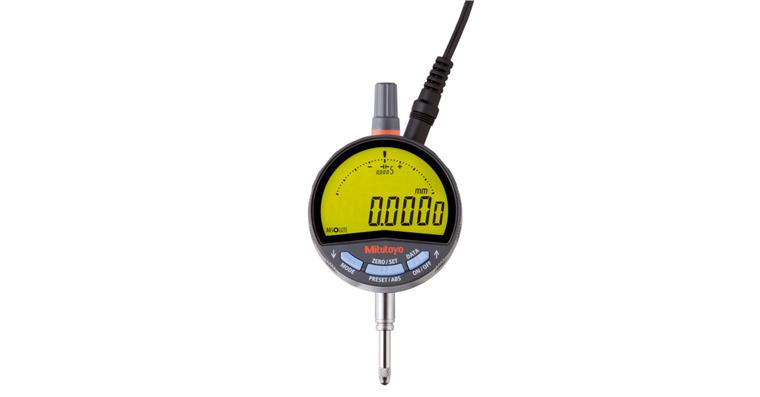

Digitale Messuhr ID-F 12,7mm 0,0005mm IP30

Digitale Messuhr ID-F 12,7mm 0,0005mm IP30

Digitale Messuhr ID-F 12,7mm 0,0005mm IP30
Item no: 1033019 201

Online price:

Available in 11-13 working days.

Application
For measuring lengths and length differences, e.g. concentricity, flatness and position measurements.

Execution
  • For dynamic and static measurements
  • ABSOLUTE system for setting the starting position once until the next battery change
  • Large digital/analogue display for easy reading of values
  • Bi-directional Digimatic S1 interface for optimum data transmission
  • Red/green LCD backlight enables visual GO/±NG tolerance assessment
  • Display can be rotated 330° for flexible display settings
  • Analogue bar graph display for precise, intuitive representation of measured values
  • MAX/MIN/RANGE (runout value) function with a frequency of 500 scans per second
  • Functions: DATA/HOLD, Digimatic data output, Digimatic S1 bi-directional interface, ON/OFF, switchable analogue measuring range, function lock, GO/±NG evaluation, ABS/INC (INC ZERO), selectable resolution, calculation function (with formula), user-defined buttons, switchable counting direction, calibration warning function, selectable scale increment
  • Mains power adapter operation

Delivery
1x dial gauge
1x power adapter
1x manufacturer's test certificate


Brand: MITUTOYO
Length measuring range: 12,7 mm
Digit increment: 0,0005 mm
Error limit: 0,0025 mm
Data transmission type: Wireless | Cable | Bluetooth
Repeat accuracy: 0,002 mm
IP protection class: IP 30
Dynamic measurement: Yes
Shank diameter: 8 mm
Rotating housing: Yes
Digit height: 11 mm
Calibration Group: CD
Other standard: Company standard
Outer diameter: 59 mm

Manufacturer part no.: 543-855-D

EAN no.: 4550501374026
