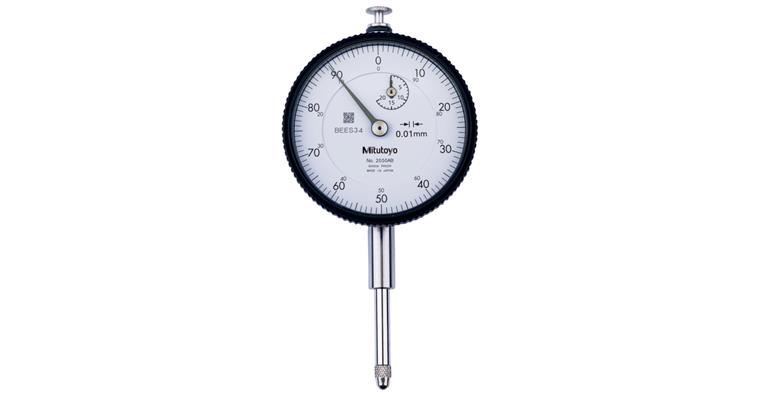

Messuhr stossgeschützt und edelsteingelagert Ablesung 0,01mm Messbereich 20 mm

Messuhr stossgeschützt und edelsteingelagert Ablesung 0,01mm Messbereich 20 mm

Messuhr stossgeschützt und edelsteingelagert Ablesung 0,01mm Messbereich 20 mm
Item no: 1033018 105

Online price:

Available in 11-13 working days.

Application
For measuring lengths and length differences, e.g. concentricity, flatness and position measurements.

Execution
  • Carbide-tipped
  • Thread: M2.5 x 0.45 mm
  • The locking screw and stroke lever (optional) can be installed on either the left or right
  • The design prevents the ingress of liquids due to the lack of through-bores, the secure seal between the outer ring and glass and the O-ring
  • Continuous scale
  • Accuracy in accordance with factory standard

Delivery
Supplied with factory test certificate

Notes
For special probes, see art. no. 1033114.

Brand: MITUTOYO
Length measuring range: 20 mm
Digit increment: 0,01 mm
Measurement travel of one pointer revolution: 1 mm
Outer diameter: 57 mm
Shank diameter: 8 mm
IP protection class: IP 40
Shock protection: Yes
Rotating housing: Yes
Measurement force: 2 N
Calibration Group: C
Scale value: 0,01 mm

Manufacturer part no.: 2050AB-19

EAN no.: 4946368842301

Product Datasheet
