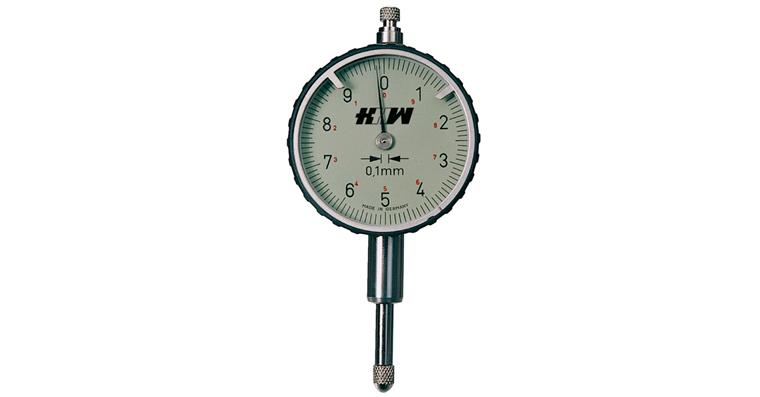

Sm. dial gauge read. 0.1 mm acc. per factory stand. meas. range 10 mm dia. 40 mm

Sm. dial gauge read. 0.1 mm acc. per factory stand. meas. range 10 mm dia. 40 mm

Sm. dial gauge read. 0.1 mm acc. per factory stand. meas. range 10 mm dia. 40 mm
Item no: 1033001 101

Online price:

Available for immediate delivery

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements.

Execution
  • Line scales with knurled outer ring, rotatable by 360° to the pointer zero position
  • 2 adjustable tolerance marks
  • Clamping shank dia. 8 mm h6 hardened and ground
  • Replaceable gauge slides
  • Accuracy according to factory standard
  • End no. 103: Also with linear, absolute mm display

Notes
For special probe, see art. no. 1033114.

Brand: HHW
Length measuring range: 10 mm
Digit increment: 0,1 mm
Measurement travel of one pointer revolution: 10 mm
Outer diameter: 40 mm
Shank diameter: 8 mm
IP protection class: IP 43
Shock protection: No
Material of outer ring: Plastic
Rotating housing: Yes
Shaft length: 12,5 mm
Other standard: Company standard
Calibration Group: C
Scale value: 0,1 mm

EAN no.: 4024496080748

Product Datasheet
