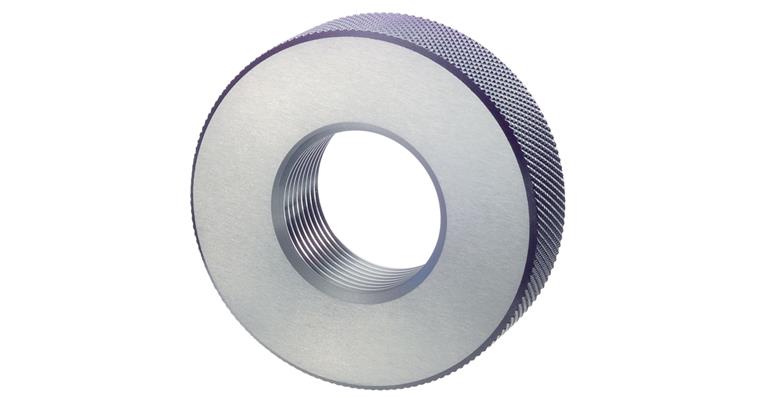

Thread go ring gauge, standard ISO thread, DIN 2285 nom. dia. M 18 6g

Thread go ring gauge, standard ISO thread, DIN 2285 nom. dia. M 18 6g

Thread go ring gauge, standard ISO thread, DIN 2285 nom. dia. M 18 6g
Item no: 1032426 223

Online price:

Available in 8-10 working days.

Application
For testing the flank and core diameter of male threads.

Execution
  • Thread go ring gauge
  • Right-hand thread
  • Tolerance 6g (M 1 - M 1.4 tolerance 6h)
  • Optimum surface quality and high hardness due to fine grinding and use of gauge steel

Notes
Further nominal diameters, pitches, tolerance classes, left-hand thread or other thread types and thread limit gauges for standard metric ISO threads, fine metric ISO threads and thread limiting roller gauges deliverable on request.

Brand: JBO
Calibration Group: AB
Thread type: Metric thread
Thread type x nominal diameter x pitch: M18 x 2.5
Pitch: 2,5 mm
Tolerance class: 6g
Material: Gauge steel
DIN: 2285-1 | 13

Manufacturer part no.: 501663

EAN no.: 4046122224647

Product Datasheet
Versions
loading
Keywords: Messmittel,Grenzlehrdorne,Gewinde Grenzlehrdorne,Gewindelehren,Lehren,Gewinde Lehrringe,Gewinde Grenzlehrringe,Lehrringe Gewinde,Gewinde-Ausschusslehrring,Ausschusslehrring,Gewinde-,Lehrring,Gewinde-Ausschuss-,Gewinde-Grenzlehrdorn,Grenzlehrdorn,Lehrdorn,Gewinde-Grenz-,Gewinde-Gutlehrring,Gutlehrring,Gewinde-Gut-,Gewinde-Gutlehrringe,Gut-Lehrringe,Gewinde-Lehrringe,

[Text nicht gefunden]

  • ATORN solid carbide drill UNI TiAlNplus 12xD with IC 7.9 mm
    271,42 €
  • Carbide recessing lathe chisel DIN 4981/ISO 7 right M20 16 H
  •
    Carbide recessing lathe chisel DIN 4981/ISO 7 right M20 32 H
  •
    ATORN reducing sleeve 32 mm/6mm, sealed
  •
    Precision digital micrometer MICROMASTER capa µm IP 54 MR 25-50
  •
    Thread limit plug gauge for standard ISO thread DIN 2280 nom. dia. M 1.4 5H
  •
    Thread limit plug gauge for standard ISO thread DIN 2280 nom. dia. M 1.6 6H
  •
    Thread go ring gauge, standard ISO thread, DIN 2285 nom. dia. M 27 6g
  •
    Thread go ring gauge, standard ISO thread, DIN 2285 nom. dia. M 30 6g
  •
    Free-hand cutting disc, SG, ALU dia. 125x1.0x22.23 mm
  •

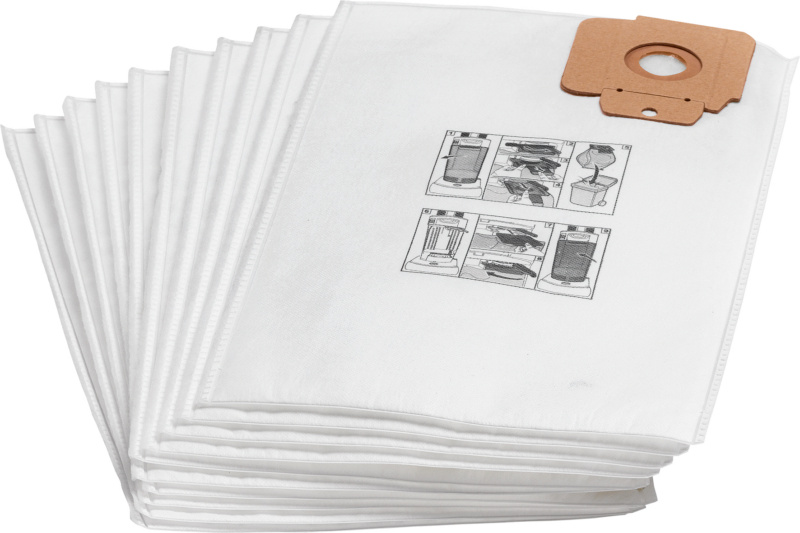

    Fleece filter bags for CV30/1 and CV38/1 filter class M
  •
