Precision pointer snap gauge Mara Meter 840 F MR 100-150 mm

Precision pointer snap gauge Mara Meter 840 F MR 100-150 mm

Precision pointer snap gauge Mara Meter 840 F MR 100-150 mm
Item no: 1032341 104

Online price:

Available in 6-8 working days.

Application
For precise testing of cylindrical parts in series production.

Execution
  • Strong, forged steel handle with heat-insulating grips
  • Long-guided measuring probe retractable by lift-off lever
  • Measuring and counter probe made from stainless, hardened steel, carbide-tipped measuring surfaces
  • Adjustable centring stop for adjustment to centre of measuring surface
  • Precise adjustment of counter probe
  • Integral measuring force spring to ensure a constant measuring force
  • Low wear due to contact-free insertion

Delivery
1x precision pointer snap gauge
1x wooden box
Operating instructions
Face insert made of steel 903
Without display unit

Notes
For Millimess precision pointer, see art. no. 1033073 101-103.

Brand: MAHR
Min./max. length measuring range: 100-150 mm
Measuring surface diameter: 12 mm
Repeat accuracy: 0,001 mm
Measurement force: 9,0 N
Shank diameter: 8 mm
Spindle clamping: Yes

Manufacturer part no.: 4450003

EAN no.: 4059192017620

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • Precision pointer snap gauge Mara Meter 840 F MR 150-200 mm
  •
    High-performance three-jaw drill chuck type SBF taper chuck B16 1-13 mm
  •
    ATORN double open-end wrench 36 x 41 mm DIN 3110
  •

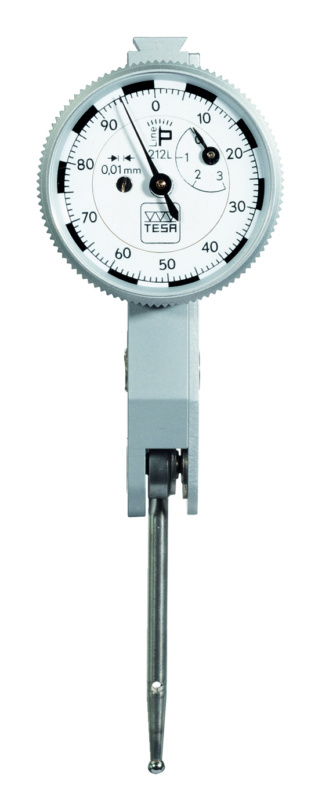

    Fühlhebelmessgerät P-LINE 212L, standard, 3 mm, 0,01 mm, Ø 27 mm
