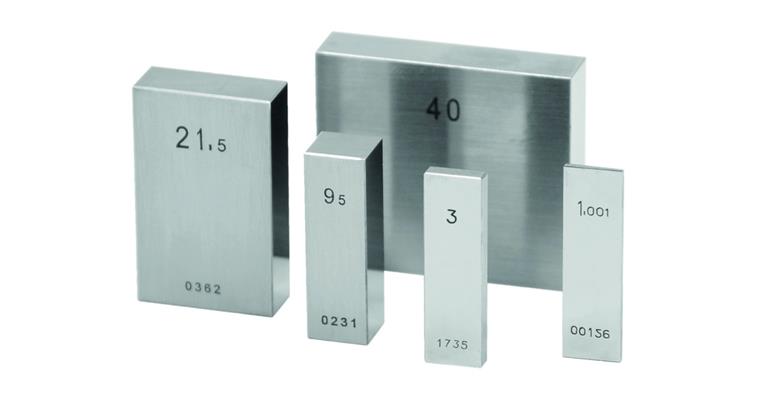

Parallel individual gauge block, special steel DIN/ISO 3650 tol. cl. 2 100 mm

Parallel individual gauge block, special steel DIN/ISO 3650 tol. cl. 2 100 mm

Parallel individual gauge block, special steel DIN/ISO 3650 tol. cl. 2 100 mm
Item no: 1032028 321

Online price:

Still in stock: 2

Application
To supplement and replace damaged or worn gauge blocks.

Execution
Cross-section dimensions:

Nominal dimension range under 0.3 mm = 20 x 9 mm, up to 10.1 mm = 30 x 9 mm, above 10.1 mm = 35 x 9 mm.

Delivery
Nominal dimension of 125 mm and above supplied in a storage box

Notes
Metric individual gauge blocks in calibration/tolerance class DIN EN ISO 3650 K and DKD test reports are deliverable on request.
Additional carbide and ceramic parallel individual gauge blocks are deliverable on request.

Brand: LIZZARD
Calibration Group: AF
Nominal dimension: 100 mm
Tolerance class: 2
Material: Gauge steel
ISO: 3650

EAN no.: 4024496076796

Product Datasheet
