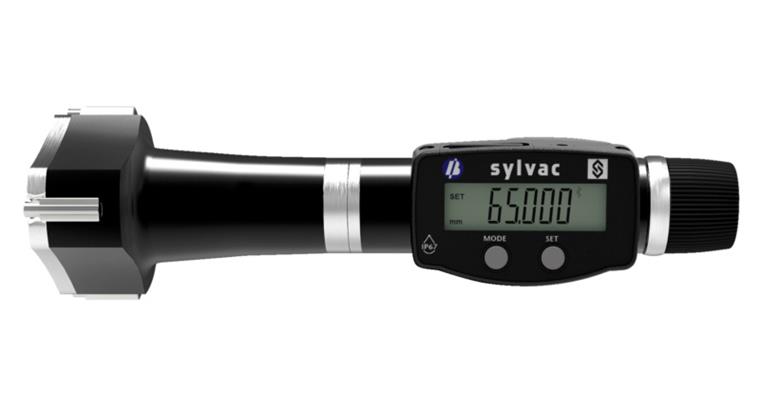

Digital 3-point internal micrometer XT3D IP67 PROXIMITY in case MR 6-8 mm

Digital 3-point internal micrometer XT3D IP67 PROXIMITY in case MR 6-8 mm

Digital 3-point internal micrometer XT3D IP67 PROXIMITY in case MR 6-8 mm
Item no: 1031936 301

Online price:

Available in 11-13 working days.

Application
Up to measuring range 12.5 mm: For through-bores. Measurements can extend to 1.9 mm above the base of the hole.
Measuring range 12.5 mm and above: For through-bores and blind holes. Measurements can extend to the base of the hole.

Execution
  • Measuring jaws up to measuring range 12.5 mm made of carbide, from measuring range 12.5 mm with carbide inserts
  • Interchangeable measuring heads
  • Sensing ratchet tool for constant measuring force
  • High-precision hardened and ground measuring spindle
  • LC display (digit height 6 mm) for error-free reading
  • Battery, 3 V (type CR 2032), designed for long-term operation
  • Functions: mm/inch switching, input of 2 preset values, reading can be switched from 0.01 mm to 0.001 mm, hold value function for the last measured value, tolerance input, max./min. function, zero value setting and preset setting

Delivery
1x micrometer with digital display unit
1x case
1x adjustment wrench

Notes
For connection cables, see art. no. 1035200 312-313.
For replacement batteries, see art. no. 1039900 102.

Brand: SYLVAC
Min./max. length measuring range: 6-8 mm
Digit increment: 0,001 mm
Measuring depth: 58 mm
Error limit: 0,004 mm
Measuring spindle increments: 0,5 mm
Data transmission type: Cable | Bluetooth
Interface: Bluetooth | RS232 | USB 2.0 type A
IP protection class: IP 67
Digit height: 6 mm
Calibration Group: I | AC
DIN: 863

Manufacturer part no.: 950-6011

EAN no.: 7640125029031

Product Datasheet
