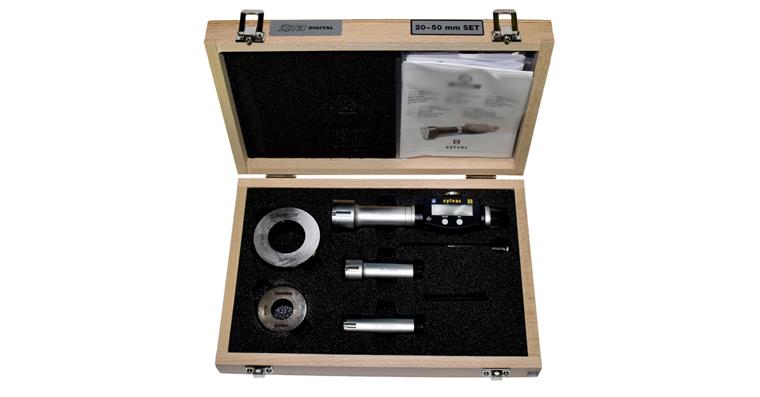

Digital 3-point internal micrometer set XT3D IP67 PROXIMITY in case MR 6-10 mm

Digital 3-point internal micrometer set XT3D IP67 PROXIMITY in case MR 6-10 mm

Digital 3-point internal micrometer set XT3D IP67 PROXIMITY in case MR 6-10 mm
Item no: 1031935 301

Online price:

Available in 11-13 working days.

Application
Up to measuring range 12.5 mm: For through-bores. Measurements can extend to 1.9 mm above the base of the hole.
Measuring range 12.5 mm and above: For through-bores and blind holes. Measurements can extend to the base of the hole.

Execution
  • Messbacken bis Messbereich 12,5 mm aus Hartmetall, ab Messbereich 12,5 mm mit Hartmetall-Einsätzen
  • Measuring jaws up to measuring range 12.5 mm made of carbide, from measuring range 12.5 mm with carbide inserts
  • Interchangeable measuring heads
  • Sensing ratchet tool for constant measuring force
  • High-precision hardened and ground measuring spindle
  • LC display (digit height 6 mm) for error-free reading
  • Battery, 3 V (type CR 2032), designed for long-term operation
  • Functions: mm/inch switching, input of 2 preset values, reading can be switched from 0.01 mm to 0.001 mm, hold value function for the last measured value, tolerance input, max./min. function, zero value setting and preset setting

Delivery
1x digital display unit
1x case
1x adjustment wrench
Measuring heads
Setting rings incl. UKAS calibration certificate

Notes
For connection cables, see art. no. 1035200 312-313.
For replacement batteries, see art. no. 1039900 102.

Brand: SYLVAC
Min./max. length measuring range: 6-10 mm
Composition of set: 6-8 mm | 8-10 mm
Digit increment: 0,001 mm
Error limit: 0,004 mm
Number of measurement heads: 2 PCS
Number of setting rings: 1 PCS
IP protection class: IP 67
Digit height: 6 mm
Interface: RS232 | USB 2.0 type A | Bluetooth
Data transmission type: Cable | Bluetooth
Calibration Group: I | AC
DIN: 863

Manufacturer part no.: 951-6103

EAN no.: 7640125028645

Product Datasheet
