Tiefenmessschraube 0-300mm 101,6x16mm mit 12 Verlängerungen

Tiefenmessschraube 0-300mm 101,6x16mm mit 12 Verlängerungen

Tiefenmessschraube 0-300mm 101,6x16mm mit 12 Verlängerungen
Item no: 1031691 105

Online price:

Available in 11-13 working days.

Application
For measuring bore depths and shoulders.

Execution
  • 4 mm diameter interchangeable rod inserts, with lapped measuring surface, offers a wide measuring range in 25 mm increments
  • A ratchet tool ensures constant measuring force
  • Hardened, precision-ground and micro-lapped measuring faces
  • Semi-gloss chrome-plated thimble and sleeve, dia. 18 mm

Delivery

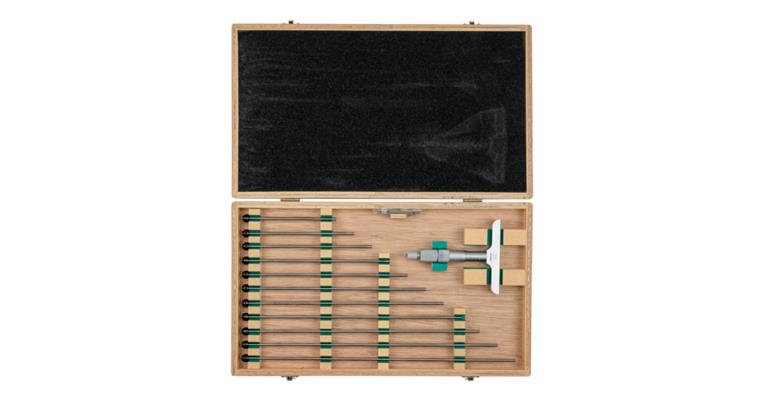

1x box
1x adjustment wrench


Brand: MITUTOYO
Min./max. length measuring range: 0-300 mm
Bridge length: 101,6 mm
Bridge width: 16 mm
Measuring surface diameter: 4 mm
Error limit: 0,006 mm
Measuring spindle increments: 0,5 mm
Min./max. measurement force: 5-10 N
Spindle clamping: Yes
Number of measurement needles: 12 PCS
Other standard: Company standard

Manufacturer part no.: 129-153

EAN no.: 4946368016771

Product Datasheet
