Digitale Bügelmessschraube 0-25 mm 40 ER

Digitale Bügelmessschraube 0-25 mm 40 ER

Digitale Bügelmessschraube 0-25 mm 40 ER
Item no: 1031558 400

Online price:

Available in 6-8 working days.

Application
For measuring e.g. shaft diameters, external dimensions on workpieces etc.

Execution
  • High-contrast digital display
  • Fully hardened and ground stainless steel measuring spindle
  • Carbide-tipped measuring spindle and anvil
  • Quick drive
  • Ratchet tool at the front
  • Functions: RESET (sets the display to zero), mm/inch, HOLD (measured value storage), LOCK (keypad lock)

Advantage
Thermally insulated painted steel frame

Delivery
Outside micrometer
Operating instructions
Battery (1x CR 2032)
Case


Brand: MAHR
Min./max. length measuring range: 0-25 mm
Digit increment: 0,001 mm
Measuring spindle increments: 0,5 mm
Measuring surface diameter: 6,5 mm
Error limit: 0,002 mm
Min./max. length measuring range in inches: 0-1 in
Digit increment in inches: 0,0005 in
IP protection class: IP 40
Other standard: Company standard
Digit height: 10 mm
Bracket depth: 24 mm
Min./max. measurement force: 5-10 N
Number of setting dimensions: 0 PCS
Calibration Group: D

Manufacturer part no.: 4157010

EAN no.: 4059192058388

Product Datasheet
Keywords:

[Text nicht gefunden]

  • Digital pocket vernier callipers 0-150 mm without data output
  •
    Digitale Bügelmessschraube 0 - 25 mm Basismodell
  •

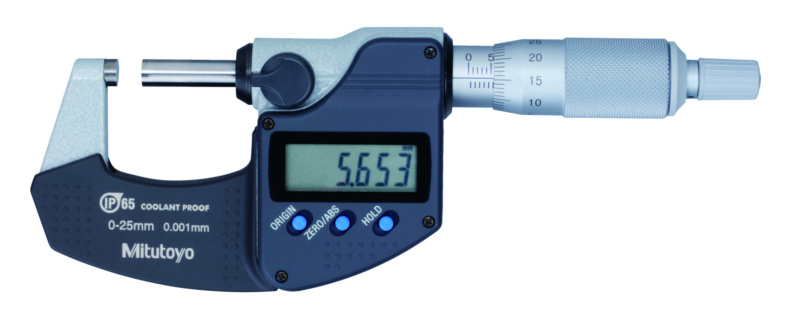

    Digitale Bügelmessschraube 0 - 25 mm Serie293 ohne Datenausgang
  •

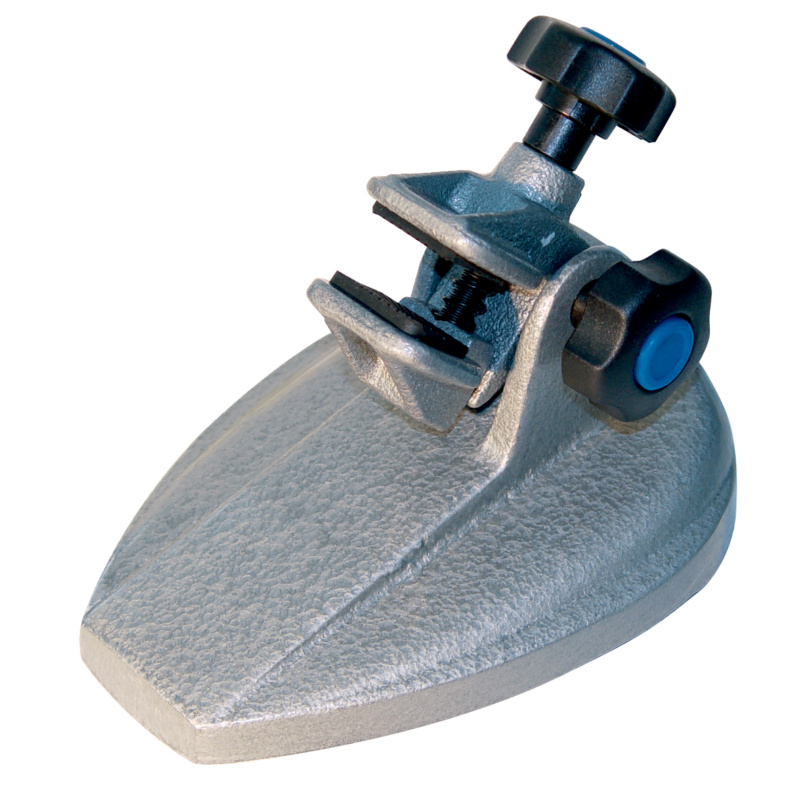

    Micrometer base stand, adjustable clamping jaws from cast iron
  •
    Rauheitsmessgerät W40 ohne Taster mit Software
  •
    Rauheitsmessgerät M 310 mit Drucker 5 µm
  •
    Battery Micro 1.5 volts EN92 LR03 AAA pack=10 pieces
  •

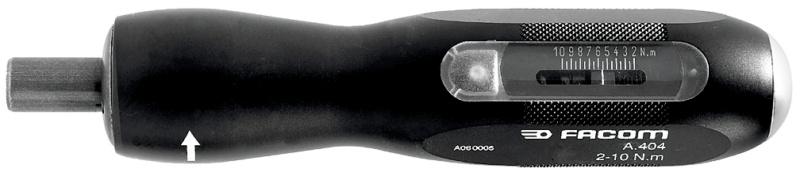

    Drehmomentschrauber m. Mikrometer ISO 6789 0,5-2,5 Nm Teil. 0,1 Nm
  •
