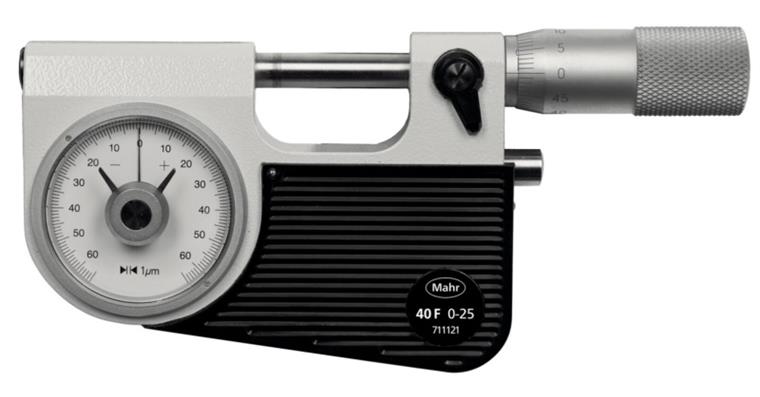

Feinzeigermessschraube 0-25 mm 40F

Feinzeigermessschraube 0-25 mm 40F

Feinzeigermessschraube 0-25 mm 40F
Item no: 1031526 101

Online price:

Available in 6-8 working days.

Application
For quick checking of series parts.

Execution
  • Anti-glare, matt chrome-plated operating and display elements
  • Dial indicator integrated in frame
  • Flat carbide measuring surfaces
  • Adjustable tolerance marks
  • Retraction of the movable anvil ensures a long service life
  • Carbide-tipped measuring spindle and anvil
  • Fully hardened and ground stainless steel measuring spindle
  • Locking mechanism
  • Constant measuring force

Advantage
Ideal for precise series parts

Delivery
Dial indicator micrometer
Operating instructions
Case


Brand: MAHR
Calibration Group: AN
Min./max. length measuring range: 0-25 mm
Indicating calliper measuring range: +/- 0,065 mm
Digit increment, micrometer: 0,01 mm
Digit increment, indicating calliper: 0,001 mm
Micrometer error limit: 0,002 mm
Bracket depth: 16 mm
Indicating calliper error limit: 0,001 mm
Measuring spindle increments: 0,5 mm
Spindle clamping: Yes
Measurement force: 9 N
Measuring surface diameter: 7,5 mm
Display: Analogue
Other standard: Company standard
Alignment tolerance: 1 µm
Flatness tolerance: 0,2 µm

Manufacturer part no.: 4150000

EAN no.: 4059192004248

Product Datasheet
