Micrometer with setting gauge carbide 0.5 pitch MR 50-75 mm

Micrometer with setting gauge carbide 0.5 pitch MR 50-75 mm

Micrometer with setting gauge carbide 0.5 pitch MR 50-75 mm
Item no: 1031502 103

Online price:

Still in stock: 5

Application
For measuring shaft diameters, external dimensions etc.

Execution
  • Measuring surfaces carbide-tipped and lapped
  • Brushed chromium-plated reading parts
  • Spindle fully hardened and ground
  • With locking lever, adjusting nut and ratchet tool
  • Insulation to protect against heat from hands
  • Measuring spindle dia. 6.5 mm
  • Measuring drum dia. 18 mm
  • Pas de l'axe de 0,5 mm
  • Diamètre de l'axe de mesure de 6,5 mm
  • Diamètre du tambour de mesure de 18 mm

Delivery
1x storage box
1x wrench
1x setting gauge


Brand: LIZZARD
Min./max. length measuring range: 50-75 mm
Vernier scale: 0.01 mm
Measuring spindle increments: 0,5 mm
Measuring surface diameter: 6,5 mm
DIN: 863
Spindle clamping: Yes
Number of setting dimensions: 1 PCS
Calibration Group: D | E

EAN no.: 4024496071524

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • Twist drill bit DIN338 HSS TIN head A002 dia. 10.0 mm
  •
    Twist drill bit DIN338 HSS TIN head A002 dia. 10.1 mm
  •
    Twist drill bit DIN338 HSS TIN head A002 dia. 12.2 mm
  •
    Angled boring cutter for through holes normal g HSS-H B 06
    137,79 €

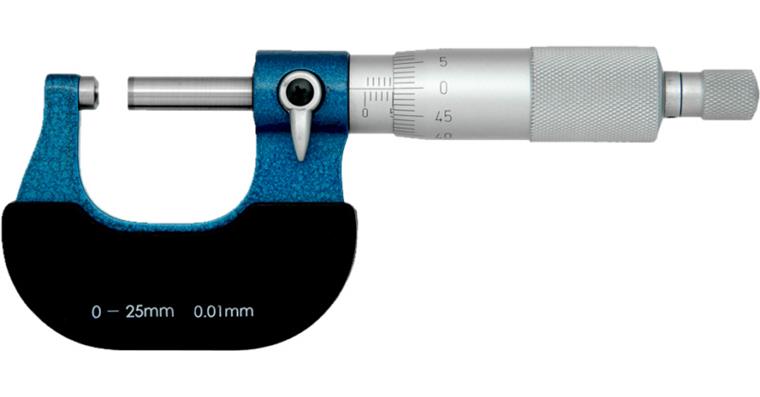

  • Micrometer with thermal insulation 0-25 mm
    61,64 €

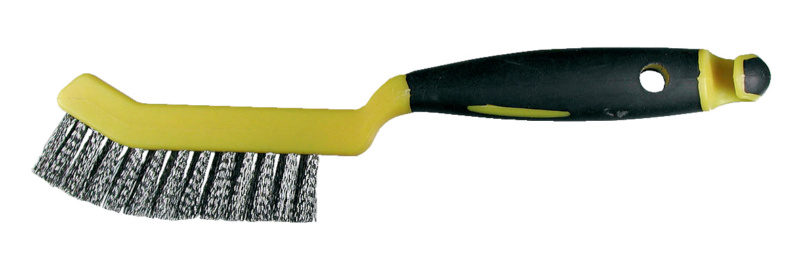

  • Brake calliper brushes crimped steel wire 2-row plastic handle 245 mm
  •
