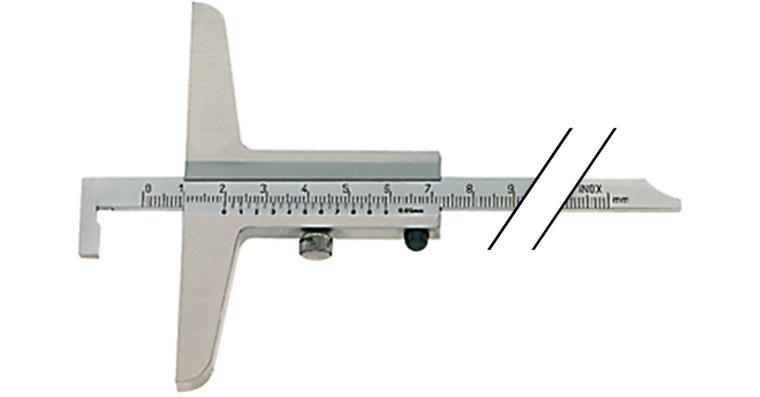

ATORN depth callipers INOX 300 mm w. hook bridge 150 mm brushed chromium-plated

ATORN depth callipers INOX 300 mm w. hook bridge 150 mm brushed chromium-plated

ATORN depth callipers INOX 300 mm w. hook bridge 150 mm brushed chromium-plated
Item no: 1031309 303

Online price:

Still in stock: 2

Application
For measuring, e. g. bore depths, shoulders on workpieces etc.

Execution
  • Vernier scale and scale with anti-glare, brushed chromium plated finish
  • Rails manufactured from one piece
  • Graduation on front and rear for refitting; side 1: hook-shaped; side 2: straight depth gauge
  • rust-proof

Delivery
In cardboard box


Brand: ATORN
Min./max. length measuring range: 0-300 mm
Vernier scale: 0.05 mm
Bridge length x bridge width: 150 x 12 mm
Type of locating: With locking screw
Calibration Group: B
ISO: 13385-2

ATORN-No.: 31058505

EAN no.: 4050293158267

Product Datasheet
