Callipers with round scale 0-150 mm reading 0.02 mm 2mm/rotation

Callipers with round scale 0-150 mm reading 0.02 mm 2mm/rotation

Callipers with round scale 0-150 mm reading 0.02 mm 2mm/rotation
Item no: 1031228 201

Online price:

Still in stock: 6

Application
For measuring external, internal, step and depth dimensions.

Execution
  • Shock-proof measuring mechanism
  • Locking screw at the top
  • Round scale, 32 mm diameter
  • Rotating dial with clamp
  • Slide and rail hardened, rust-free

Advantage
Built-in shock protection device with locking screw

Delivery
1x case
1x measurement report

Notes
For test gauge, see art no. 1032060 201

Brand: TESA TECHNOLOGY
Min./max. length measuring range: 0-150 mm
Scale value: 0,02 mm
Measurement travel of one pointer revolution: 2 mm
Length of jaw: 40 mm
Depth gauge rod: Flat
Length of cross tips: 16 mm
Type of locating: With locking screw
Error limit: 0,03 mm
With drive wheel: No
ISO: 13385-1
Material: Metal
Calibration Group: A

Manufacturer part no.: 00510008

EAN no.: 7630041105353

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • Callipers with round scale 0-200 mm reading 0.02 mm 2mm/rotation
  •
    Callipers with round scale 0-300 mm reading 0.02 mm 2mm/rotation
  •
    Callipers with round scale 0-150 mm 0.01 mm
  •
    1/2 inch flat nozzle 32x4.2 mm pack = 2 pieces flex. plastic coolant hoses
  •

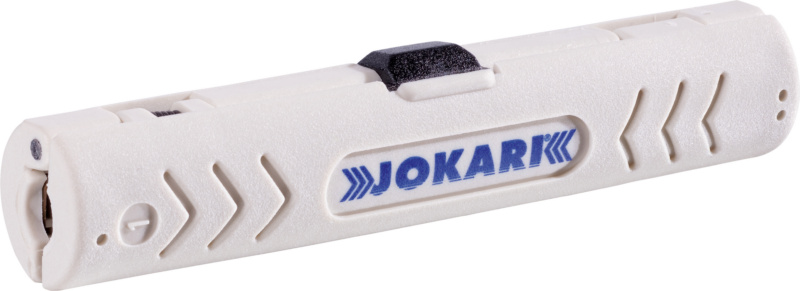

    Sheath and wire-stripping tool, application range 4.5-10 mm, length 100 mm
  •
    Torch PELI 1910 LED flashlight
  •
    Precision parallel rest set 24 pairs accuracy +/- 0.01 mm L=150 mm
  •
    Callipers with round scale 0-300 mm reading 0.02 mm 2mm/rotation
  •
    Callipers with round scale 0-150 mm reading 0.01 mm 1 mm/rotation
  •
    1/2 inch torque wrench with reversible ratchet setting range 80-400 Nm
  •

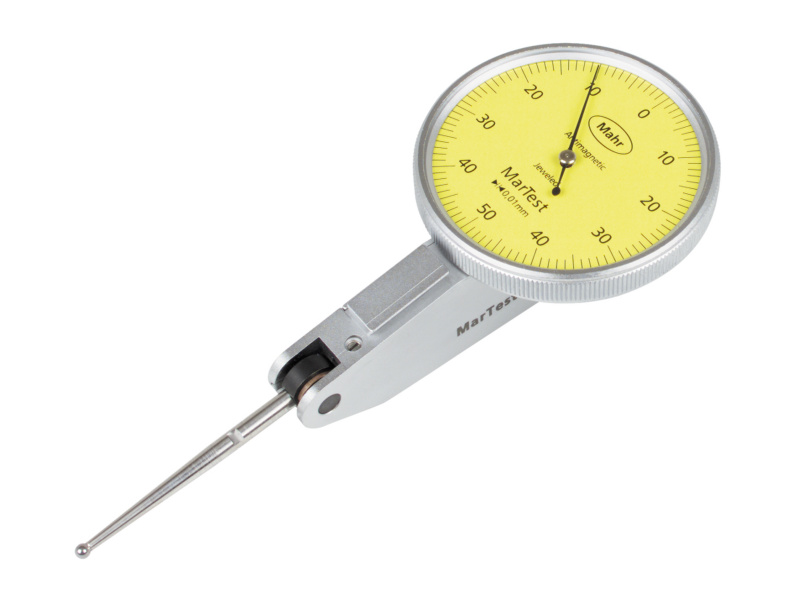

    Lever gauge probe MarTest 800 SGB reading 0.01 mm measuring range 0.5 mm
  •
