3-Punkt Innenmessschraube 8-10 mm mit TiN-beschichteten Messflächen

3-Punkt Innenmessschraube 8-10 mm mit TiN-beschichteten Messflächen

3-Punkt Innenmessschraube 8-10 mm mit TiN-beschichteten Messflächen
Item no: 1031128 100

Online price:

Available in 11-13 working days.

Application
For measuring through-bores and short pilots

Execution
  • Semi-gloss chrome-plated thimble and sleeve
  • Measuring range 2-6 mm: Carbide
  • Measuring range 6-12 mm: Titanium-coated carbide
  • Measuring range 12-300 mm: Titanium-coated hardened steel
  • Accuracy in accordance with factory standard
  • Measuring method: 2-6 mm: 2-point measurement, 6-300 mm 3-point measurement

Advantage
Titanium-coated measuring surfaces for excellent durability and impact resistance

Delivery
1x inside micrometer
1x box
1x adjustment wrench
Factory test certificate
Without setting ring or extension


Brand: MITUTOYO
Min./max. length measuring range: 8-10 mm
Vernier scale: 0.001 mm
Measuring depth: 59 mm
Error limit: 0,002 mm
Calibration Group: I
Measuring spindle increments: 0,5 mm

Manufacturer part no.: 368-162

EAN no.: 4946368517162

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • Roller wrench RO40 for clamping nut HPC 16 cat. no. 21509 104
  •
    Stainless precision pocket vernier callipers 0-150 mm w. locking screw 0.05 mm
  •
    Stainless precision pocket vernier callipers 0-150 mm w. locking screw 0.02 mm
  •
    Digital ABS AOS callipers OD carbide 0-150 mm drive roller
  •
    Precision 3-point internal micrometer IMICRO MR 4.0-4.5 mm
  •
    Precision 3-point internal micrometer IMICRO MR 5.5-6.5 mm
  •
    3-point internal micrometer MR 10-12 mm
  •
    3-point internal micrometer set MR 50-100 mm
  •
    Square universal ratchet set 8 pieces 3.4-11 mm in box
  •
    Impact ins. nylon dia 60 mm for soft-face hammer SUPERCRAFT, art.no.54153-54155
  •

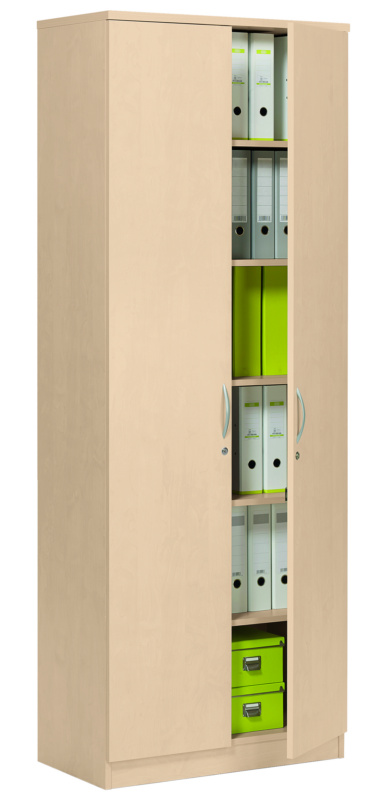

    Hinged door cabinet multi H2200xW800xD420 mm decor maple 6 folder heights
  •
