Precision pocket vernier callipers 0-150 mm w. locking screw and double V-guide

Precision pocket vernier callipers 0-150 mm w. locking screw and double V-guide

Precision pocket vernier callipers 0-150 mm w. locking screw and double V-guide
Item no: 1031030 101

Online price:

Available for immediate delivery

Application
For measuring external, internal, step and depth dimensions.

Execution
  • Vernier scale and scale with brushed chrome-plated finish for glare-free reading
  • Locking screw at the bottom
  • Measuring surfaces are ground and finely lapped
  • Slide and rail hardened, rust-free

Advantage
  • Thread table on rear
  • Flat vernier scale enables parallax-free reading
  • With double V-guide

Delivery
1x case


Brand: LIZZARD
Min./max. length measuring range: 0-150 mm
Vernier scale: 0.05 mm
Depth gauge rod: Flat
Vernier scale (imperial): 1/128 inch
Length of jaw: 40 mm
Min./max. length measuring range in inches: 0-6 in
DIN: 862
ISO: 13385-1
Type of locating: With locking screw
Calibration Group: A

EAN no.: 4024496071043

Product Datasheet
Keywords:

[Text nicht gefunden]

  • Stainless precision pocket vernier callipers 0-150 mm w. locking screw at bottom
  •
    Stainless precision pocket vernier callipers 0-150 mm w. locking screw 0.02 mm
  •
    Digital pocket vernier callipers 0-150 mm with data output
  •
    Digital pocket vernier callipers 0-150 mm with data output
    157,32 €
  • Digital pocket vernier callipers 0-300 mm with data output
  •

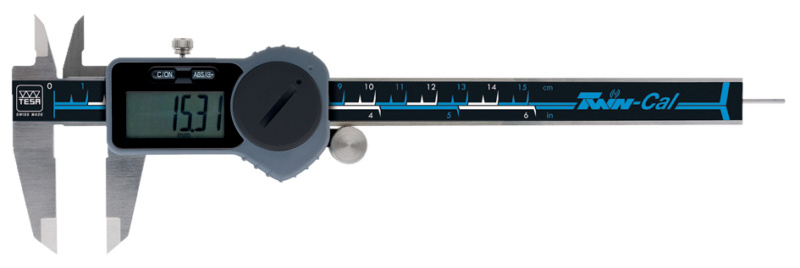

    TWIN-CAL IP40 digital pocket vernier callipers 0-150mm data outp. a. drive wheel
  •
