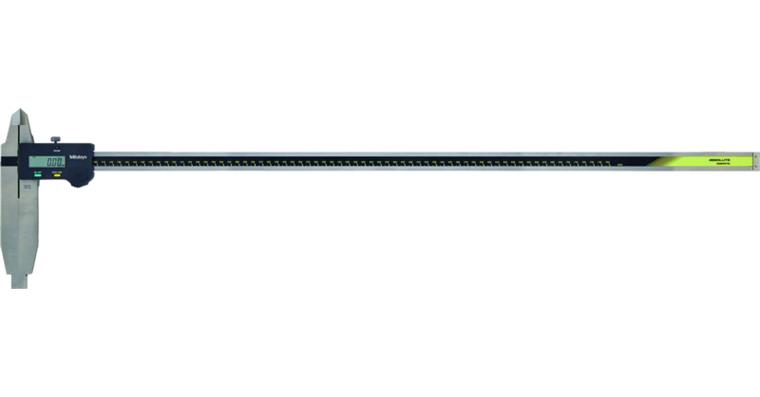

Dig. workshop callipers 0-750 mm, w. blade tips, data output

Dig. workshop callipers 0-750 mm, w. blade tips, data output

Dig. workshop callipers 0-750 mm, w. blade tips, data output
Item no: 1031015 602

Online price:

Still in stock: 2

Application
For measuring external and internal dimensions.

Execution
  • Blade-shaped measuring surfaces allow external measurements
  • Rounded measuring surfaces allow internal measurements
  • ABSOLUTE system for reliable measurement
  • Functions: ORIGIN (ABS zero point), ON/OFF, low voltage alarm, data output

Delivery
1x box
1x battery

Notes
For connection cables, see art. no. 1035200 601, 602, 608.
For replacement batteries, see art. no. 1039900 101.

Brand: MITUTOYO
Min./max. length measuring range: 0-750 mm
Digit increment: 0,01 mm
Length of jaw: 150 mm
Measuring tips: Yes
Inner measurement scales: 20 mm
Data transmission type: Cable | Wireless
Interface: Digimatic | USB 2.0 type A | Integrated Wireless
Length of cross tips (Länge der Messerspitzen): 56 mm
Error limit: 0,06 mm
Digit height: 11 mm
Type of locating: With locking screw
Other standard: Company standard
Calibration Group: A

Manufacturer part no.: 551-206-10

EAN no.: 4946368124858

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • Digitale Bügelmessschraube QuickMike Messbereich 25-55 mm
  •
    Precision depth callipers 0-200 mm, w. offset depth gauge rod
  •

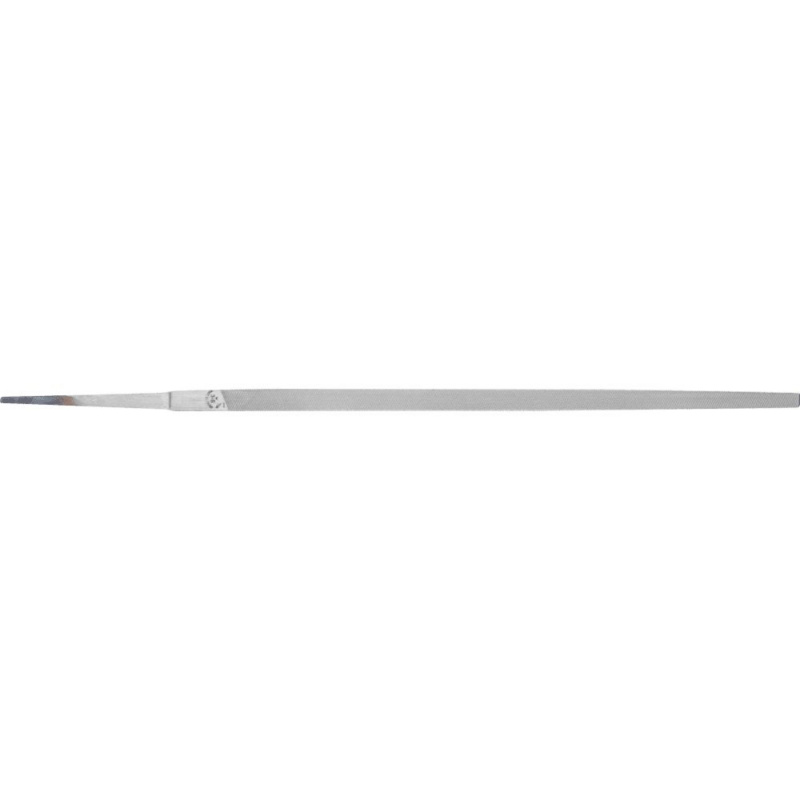

    Square engineer's file DIN 7261 D W=8 mm L=200 mm German cut 3
  •
