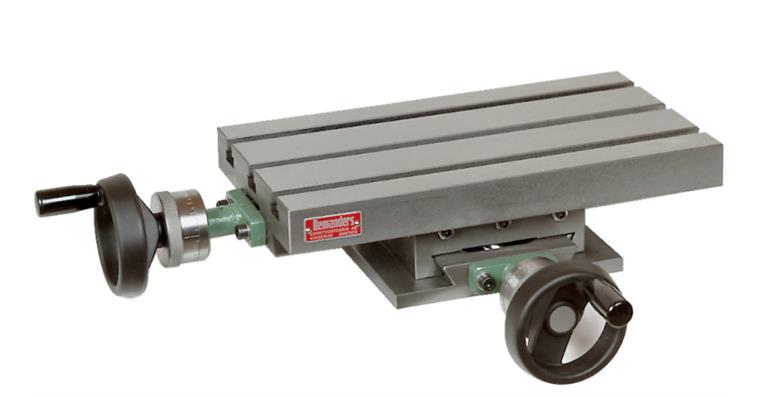

Coordinate table, table surface 300x160 mm

Coordinate table, table surface 300x160 mm

Coordinate table, table surface 300x160 mm
Item no: 1029517 101

Online price:

Available in 6-8 working days.

Execution
  • With dovetail guides, adjustable with guide rails
  • Made from special cast iron, ground clamping surface and guides
  • Flatness accuracy 0.03 mm
  • Twisted trapezoidal threaded spindles with axial bearings
  • Thimbles with zero point adjustment; directly readable
  • Scale graduation 0.05 mm

Notes
Art. no. 1029517 102-104: With water channel and also clamping lever on both axes so that clamping is possible in any position.

Brand: ---
Table length: 300 mm
Table width: 160 mm
Surface area length: 160 mm
Surface area width: 160 mm
Overall height: 78 mm
Longitudinal motion: 180 mm
Lateral motion: 100 mm
T-slot width: 10 mm
T slot spacing: 50 mm
Load-carrying capacity: 75 kg
Weight: 16 kg
Base area length x base area width: 160 x 160 mm

EAN no.: 4024496070893

Product Datasheet
