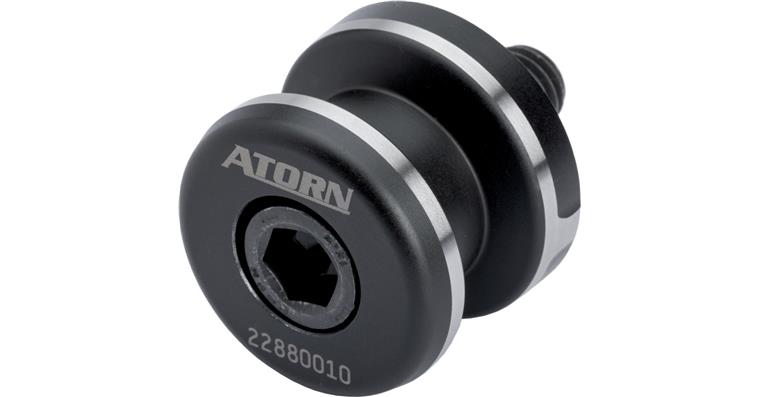

ATORN Easy Point alignment bolt

ATORN Easy Point alignment bolt

ATORN Easy Point alignment bolt
Item no: 1027862 102

Online price:

Available in 4-6 working days.

Application
The alignment bolt ensures the exact alignment of the module with the axis.

Execution
  • Made of tool steel
  • Polished clamping and working surfaces
  • Mounting on the module or clamping device with a screw

Advantage
  • Easy integration into the basic system
  • Repeat accuracy <0.005 mm
  • The probability of tilting is minimised
  • Maintenance-free

Delivery
1x alignment bolt


Brand: ATORN
Type: Alignment bolt
Length: 38,8 mm
Diameter: 41,5 mm
Diameter 2: 27,5 mm
Diameter 3: 40,0 mm
Adapter diameter: 25,0 mm
Connection thread: M12
Weight: 0,201 kg

ATORN-No.: 22880010

EAN no.: 4066107007713

Product Datasheet
