ATORN 4x clamping station type K 20 release hydraulic

ATORN 4x clamping station type K 20 release hydraulic

ATORN 4x clamping station type K 20 release hydraulic
Item no: 1027846 201

Online price:

Available in 6-8 working days.

Execution
  • Hydraulic unlocking
  • Repeat accuracy < 0.005 mm
  • Unhardened steel
  • Mounting holes can be created in the base plate according to your specifications on request
  • The clamping station is equipped with one connection: 1x hydraulic opening

Advantage
Low overall height of only 46 mm

Delivery
1x K20 clamping station

Notes
Mounting sketches, other sizes and clamping stations tailored to your machine available on request

Brand: ATORN
Type: K20 4-way clamping station
Model: without indexing
Width: 396 mm
Width 2: 19 mm
Thickness: 10 mm
Thickness 2: 46 mm
Length: 396 mm
Length 2: 53 mm
Locating bore hole diameter: 20 mm
Distance: 180 mm
Distance 2: 200 mm
Retraction force/closing force: 4 x 20 kN
Retaining force: 55 kN
Weight: 44 kg

ATORN-No.: 21710143

EAN no.: 4050293154474

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • Indexable milling insert TNGX 160608SR-F:M8310
  •
    1/4 Zoll Mini Bit Akku-Schrauber-Satz 9230B-1 inkl. Holster Solo
  •
    ATORN SC single-tooth milling cutter polished version, diameter 8.0 mm
  •

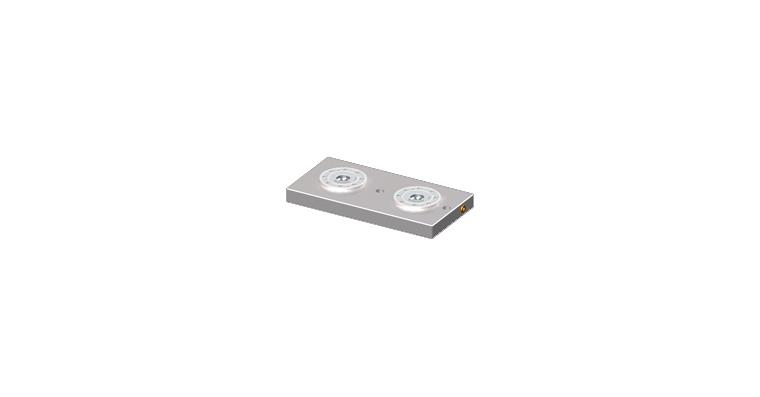

    ATORN 2x clamping station type K 20 release hydraulic
  •
