Application
For NC machines and machining centres; increases profitability through fewer tool changes and shorter run times per workpiece.

Execution

• The ATORN Easy Point zero point clamping system incorporated in the basic body provides maximum flexibility and ensures that the clamping equipment can be changed quickly
• Functional surfaces hardened and polished
• Centre clamping through left-hand and right-hand spindle threads
• High repeat accuracy
• Easy to use
• Reliable machining process with maximum stability thanks to tried-and-tested RS-Z centre clamping devices
• Compatible with ZeroClamp clamping system

Advantage

• Space-saving and compact, excellent accessibility for 5-axis machining
• Fewer tool changes due to multiple clamping
• Shorter runtimes due to optimisation of cycle times
• Clamping equipment can be quickly changed using ATORN Easy Point

Delivery

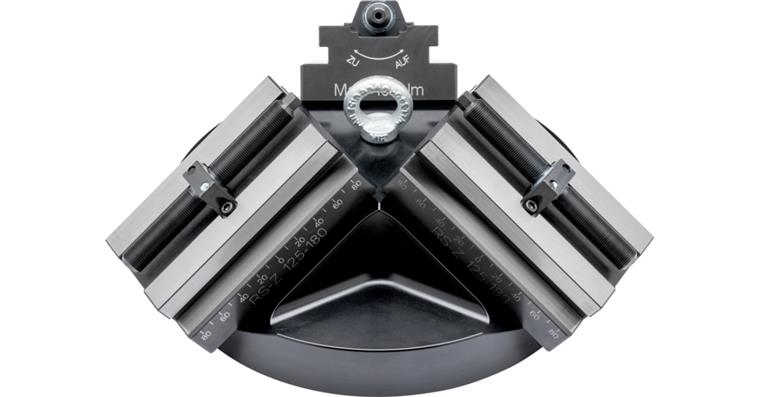

1x basic body including ATORN Easy Point module; 3x RS-Z centre clamping devices without jaws, includes packaging and transport

Notes
Example:
Matsuura MAM 72-35V with 40-pallet memory: original load = 40 workpieces.
The RS20.3P-310 allows for the clamping and machining of 120 workpieces without the need for any operators.
