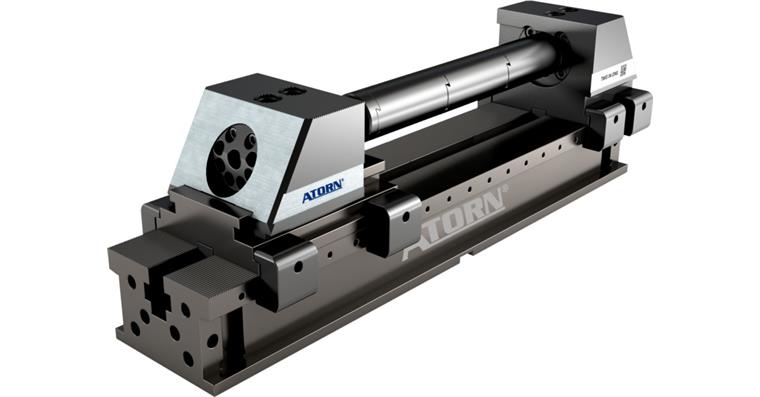

ATORN 5-A clamping set L300, without jaws

ATORN 5-A clamping set L300, without jaws

ATORN 5-A clamping set L300, without jaws
Item no: 1027593 110

Online price:

Available in 8-10 working days.

Application
Unique innovative system design that combines two basic applications in one product. Two-in-one for use as a 5-axis or multi-clamping system. Highly flexible, modular jaw range, positive-locking jaw connection.

Execution
  • The position of the fixed and movable jaws on the rail can be altered so that large and small parts are always accommodated centrally relative to the table
  • System is infinitely extendable using the adapter set (available on request)
  • When clamping with an increased clamping width, the clamping distance is only 30 mm less than rail length. Example: With a rail length of 400 mm, the clamping width can be 370 mm. Only using the large part jaw
  • Positive-locking jaw interface
  • Easy to clean: If necessary, the entire system can be disassembled, cleaned and reassembled in just a few minutes
  • 100 mm clamping range without adjustment
  • 40 kN clamping force at a tightening torque of 85 Nm

Advantage
  • Extremely stiff for low vibration
  • Two in one: The system can be used as a 5-axis and multi-clamping system. This is a unique feature. The base is an ATORN clamping rail from the 120 series
  • Tool-free spindle extension - mounting and removal in one click. Smart clamping solution at a great price
  • Simple and straightforward to use. The system can be changed over very quickly
  • Optimised interfering edge design

Delivery
1x clamping rail, 1x complete 5-axis system, spindle extensions (number of pieces dependent on version and rail length)


Brand: ATORN
Type: Two in One 300 mm
Jaws width: 120 mm
Body height: 228 mm
Body width: 160 mm
Body length: 300 mm
Clamping rail length: 300 mm
Clamping rail width: 120 mm
Clamping rail height: 80 mm
Min./max. clamping width: 0-270 mm
Tension force: 40 kN
Weight: 26,5 kg
Groove width: 20 mm
Width across flats: 12 mm

ATORN-No.: 21724210

EAN no.: 4050293628951

Product Datasheet
