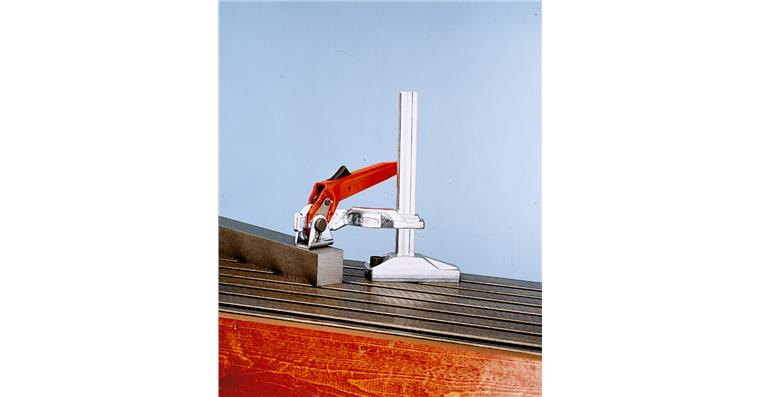

Quick-action clamp (machine table clamp) size 4 120 x 200 mm

Quick-action clamp (machine table clamp) size 4 120 x 200 mm

Quick-action clamp (machine table clamp) size 4 120 x 200 mm
Item no: 1027360 124

Online price:

Available in 8-10 working days.

Application
For quick and secure clamping on machine tables and appliances. For drilling and light milling work.

Execution
  • Swivels and is infinitely height-adjustable
  • Lever mechanism for quick clamping and release
  • Heat-treated and zinc-plated
  • Lever, plastic-coated


Brand: BESSEY
Overhang: 120 mm
Clamping height: 200 mm
Rail cross-section L x W: 28 x 11 mm
Hole diameter for fastening screw (Bohrungs-Ø für Befestigungsschraube): 16,5 mm
Clamping force at 50-mm clamping height: 7500 N
Weight: 2,49 kg

Manufacturer part no.: BS4N

EAN no.: 4008158018157

Product Datasheet
