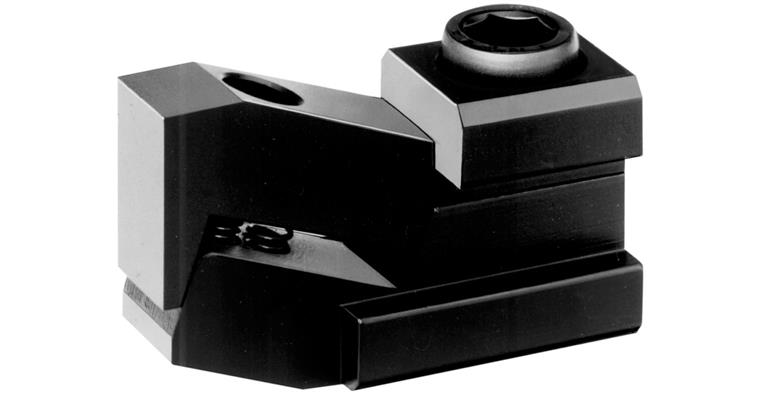

Flat clamp, model Mini-Bulle, pair, nominal groove size 22 mm

Flat clamp, model Mini-Bulle, pair, nominal groove size 22 mm

Flat clamp, model Mini-Bulle, pair, nominal groove size 22 mm
Item no: 1027212 105

Online price:

Available in 6-8 working days.

Application
These heat-treated flat tension clamps can be used to clamp particularly low workpieces.

Execution
  • Heat-treated with a black oxide finish
  • Wedge effect forwards and downwards

Advantage
  • The wedge effect of the clamping jaws causes the workpiece to be pressed down firmly and securely onto the machine table
  • The horizontal forces are absorbed by a screw fitting the size of the groove, which provides for perfect clamping without damaging the table

Delivery
In pairs in a box, complete with fastening screws to ISO 4762 (8.8) and hexagon screwdriver to ISO 2936.

Notes
Hmin./Hmax.: Depending on the groove depth to DIN 650.
The clamping piece can be ground down by x mm. This creates lower clamping heights.

Brand: AMF
Suitable for groove width: 22 mm
Min. height (H min.): 4,5 mm
Max. height (H max.): 21,5 mm
Width (B): 35 mm
Clamping width (C): 3 mm
Height (H1): 20 mm
Length (L): 89 mm
Clamping height (X): 9 mm
Tension force (Spannkraft F1): 16 kN
Clamping force 2 (Spannkraft F2): 1,9 kN
Suitable cheese-head screw DIN 912: M20

Manufacturer part no.: 73080

EAN no.: 4020772073084
