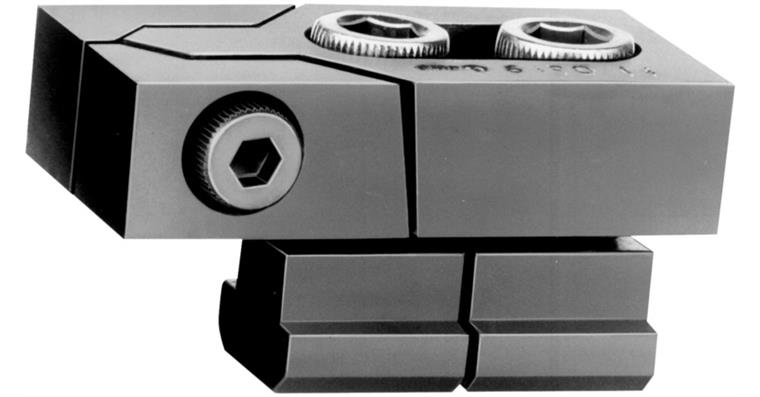

Deep clamping jaws, pair, model Bulle, nominal groove size 14 mm M 12

Deep clamping jaws, pair, model Bulle, nominal groove size 14 mm M 12

Deep clamping jaws, pair, model Bulle, nominal groove size 14 mm M 12
Item no: 1027210 102

Online price:

Still in stock: 2

Application
For clamping with low-pressure effect.

Execution
  • Heat-treated with a black oxide finish
  • Wedge effect forwards and downwards

Advantage
  • No protruding clamping screws
  • Clamps at every angle to the groove

Delivery
In pairs in a box, complete with fastening screws to ISO 4762 (10.9), nuts for T-grooves to DIN 508 and hexagon screwdriver to ISO 2936.

Notes
Also deliverable on request for groove width 30 mm.

Brand: AMF
Suitable for groove width: 14 mm
Width (b1): 40 mm
Distance (c): 3 mm
Suitable cheese-head screw DIN 912 (d): M12
Overall height of pull-down jaw (h1): 20 mm
Length (l): 80 mm
Length 2 (l1): 39 mm
Length 3 (l2): 26 mm
Tension force (Spannkraft F1): 22 kN
Clamping force 2 (Spannkraft F2): 0,9 kN

Manufacturer part no.: 72967 PAAR

EAN no.: 4020772072964

Product Datasheet
