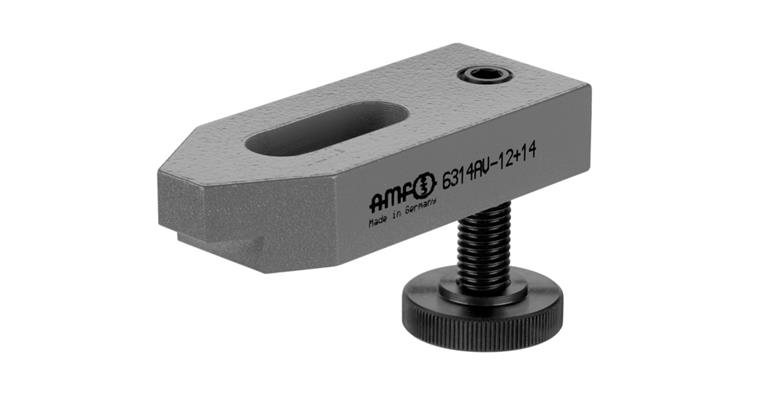

Clamp, offset with adjustable support screw, nominal groove size 12+14 mm

Clamp, offset with adjustable support screw, nominal groove size 12+14 mm

Clamp, offset with adjustable support screw, nominal groove size 12+14 mm
Item no: 1027118 101

Online price:

Available in 6-8 working days.

Execution
  • Offset
  • Heat-treated steel, painted

Delivery
With adjustable support screw (without clamping screw).

Notes
Clamping range H dependent on groove depth to DIN 650, and screw-in length of the nut. The lowest clamping height is achieved by turning the clamp over. For detent clamp levers, see art. no. 1027117.

Brand: AMF
Suitable for screw: M12 | M14
Min./max. clamping height (H): 10-55 mm
Slot width (B1): 14 mm
Length (L): 100 mm
Thread diameter x thread length (D x LS): 12 x 49 mm
Clamping shoe height (A): 20 mm
Section (A1): 8 mm
Ratio (A2): 10 mm
Clamping shoe width (B2): 40 mm
Distance (E1): 21 mm
Slot length (E2): 40 mm
Max. clamping height: 55 mm
Min. clamping height: 10 mm
Thread diameter: 12 mm
Thread length: 49 mm

Manufacturer part no.: 6314AV M12

EAN no.: 4020772074562

Product Datasheet
