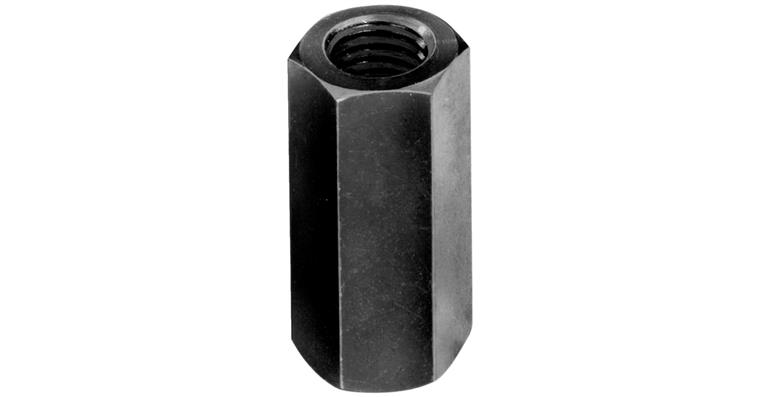

Extension nut 3.0 d high M 14 size 21

Extension nut 3.0 d high M 14 size 21

Extension nut 3.0 d high M 14 size 21
Item no: 1027013 107

Online price:

Available in 6-8 working days.

Application
The extension nut will serve as any connection element between DIN 787 (screw for T-grooves, art. no. 1027015) and DIN 6379 (stud screw, art. no. 1027003) and is not suitable for screw fixing.

Execution
  • Steel
  • Tempered

Notes
For functional and safety reasons, both screws should be screwed in to half the nut height.
Minimum length of thread engagement = 1.2 x diameter.

Brand: AMF
Thread dimension: M14
Width across flats (s): 21 mm
Width across corners (e): 23,36 mm
Height (m): 42 mm
Property class: 10

Manufacturer part no.: 82297

EAN no.: 4020772082291

Product Datasheet
