Nut blank for T-grooves groove nominal size 20 mm

Nut blank for T-grooves groove nominal size 20 mm

Nut blank for T-grooves groove nominal size 20 mm
Item no: 1027006 208

Online price:

Available in 6-8 working days.

Application
These blanks allow economical manufacture of "nuts for T-grooves" with customer-specific thread.

Execution
  • Heat-treated steel, 0.35-0.45 % C
  • Unhardened
  • Plain

Notes
Heat treatment to achieve grade 10, equivalent to 22-32 HRC.
Hardening: 880°C - 45 minutes, quench in oil at 75°C.
Annealing: 550°C - 2 hours.

Brand: AMF
Nominal dimension of groove: 20 mm
Slot nut width (a): 19,7 mm
Length (e): 32 mm
Height (h): 24 mm
Slot nut height (k): 12 mm

Manufacturer part no.: 84574

EAN no.: 4020772084578

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • Nut blank for T-grooves groove nominal size 22 mm
  •
    Nut blank for T-grooves groove nominal size 12 mm
  •
    OPT-I-STORE insert 260x345x30mm f. depr. cent. box-end wrench set no. 59660 101
  •
    ATORN hand tap FS HSSE nitrided C 352 0° M6 1 mm ISO2 D/S 3xD
  •
    Nut blank for T-grooves groove nominal size 28 mm
  •
    Nut blank for T-grooves groove nominal size 24 mm
  •
    Nut blank for T-grooves groove nominal size 16 mm
  •

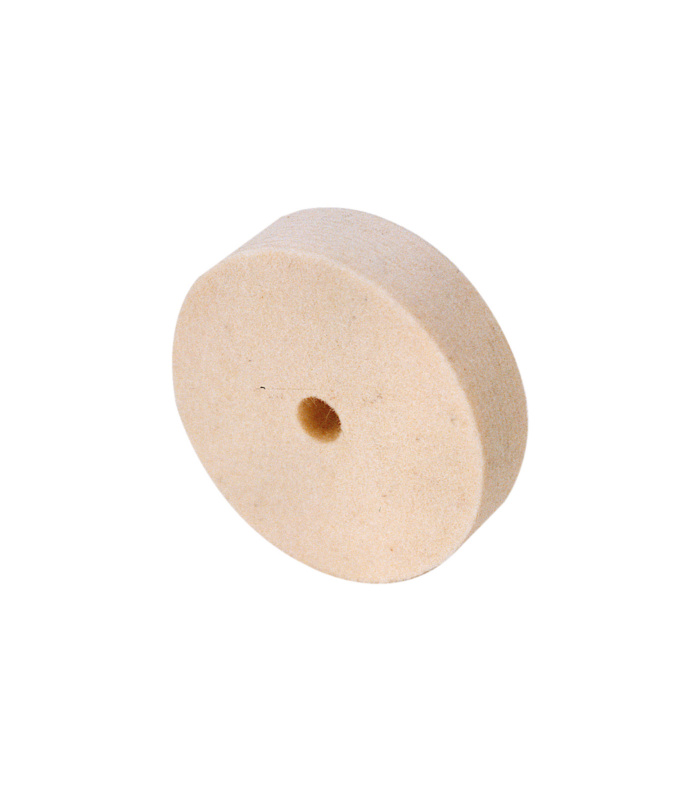

    Discs, felt polishing disc 40 x 10 mm
  •
    OPT-I-STORE insert 260x345x30mm f. depressed centre comb. spanners set 59612 101
  •

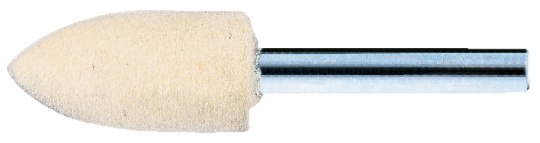

    Felt polishing point ogival shank dia. 6mm head dia. x length 10x18mm
  •
