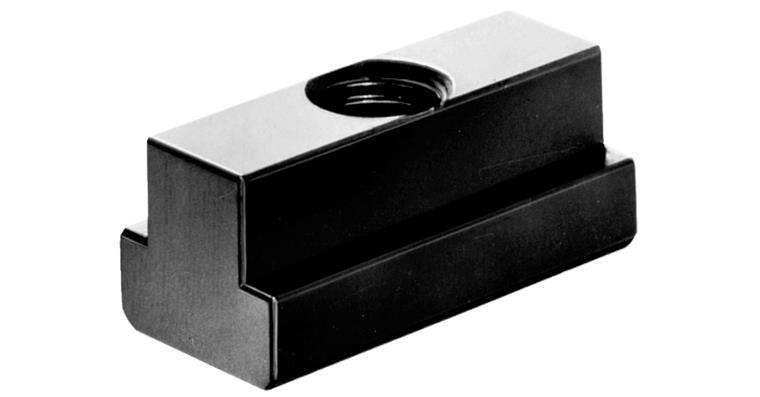

Nut for T-grooves long shape M 12 x 14

Nut for T-grooves long shape M 12 x 14

Nut for T-grooves long shape M 12 x 14
Item no: 1027005 205

Online price:

Available for immediate delivery

Application
For clamping in T-grooves.

Execution
Tempered

Advantage
This "long shape" protects the table grooves on precision machines

Notes
For test force, see DIN 508.

Brand: AMF
Nominal dimension of groove: 14 mm
Thread dimension (d): M12
Slot nut width (a): 13,7 mm
Length (e): 22 mm
Width (l): 44 mm
Height (h): 16 mm
Slot nut height (k): 8 mm
Property class: 10

Manufacturer part no.: 84681

EAN no.: 4020772084684

Product Datasheet
