ATORN gripper jaws external hardened 1.5 mmx60° M14 spacing 30 mm

ATORN gripper jaws external hardened 1.5 mmx60° M14 spacing 30 mm

ATORN gripper jaws external hardened 1.5 mmx60° M14 spacing 30 mm
Item no: 1026940 054

Online price:

Available in 6-8 working days.

Delivery
3 pieces in a set


Brand: ATORN

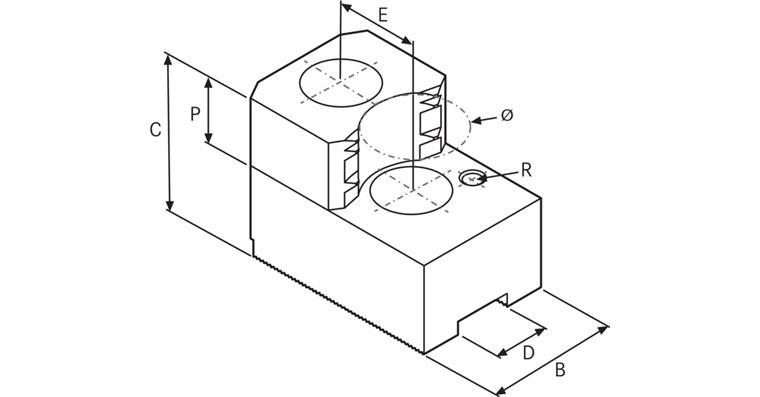

Groove width (D): 18 mm
Drilling clearance (E): 30 mm
Suitable for thread: M14
Material of jaws: Hardened steel
Min. clamping diameter (ca.): 102 mm
Max. clamping diameter (ca.): 178 mm
Vibration diameter (ca.): 322 mm

ATORN-No.: 22640015

EAN no.: 4050293681482
