Mitlaufende Zentrierspitzen 60°, MK 2, Größe 102, HG mit Abdrückmutter

Mitlaufende Zentrierspitzen 60°, MK 2, Größe 102, HG mit Abdrückmutter

Mitlaufende Zentrierspitzen 60°, MK 2, Größe 102, HG mit Abdrückmutter
Item no: 1024204 201

Online price:

Available in 8-10 working days.

Application
For counter-clamping workpieces on lathes and grinding machines

Execution
  • Standard tip for virtually every clamping situation
  • With draw-off nut
  • Body hardened and polished
  • Tip angle 60°

Advantage
  • Proven three-way mount for high axial and radial loads
  • Lifetime lubrication for minimal maintenance requirements
  • Maximum concentricity deviation 0.005 mm for maximum precision


Brand: RÖHM
Morse taper size: MK 2

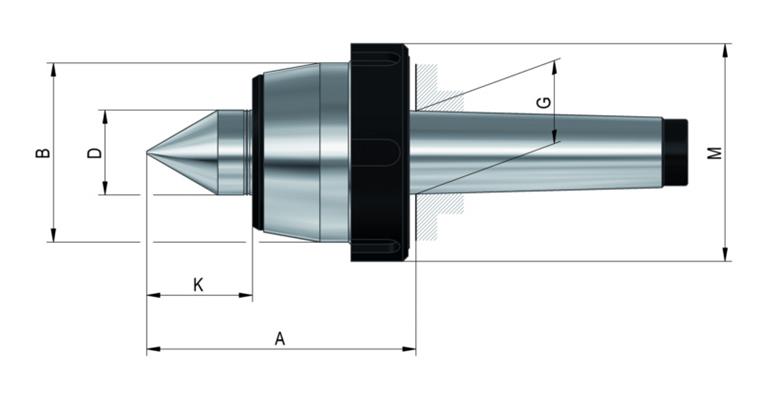

Max. tip diameter (Spitzen-Ø D): 20 mm
Tip diameter (Spitzen-Ø J): 20 mm
Diameter of housing (Gehäuse-Ø B): 45 mm
Length of tip (Spitzenlänge K): 24 mm
Programming size (Programmiermaß A): 65 mm
Adapter diameter (Aufnahme-Ø G): 17,78 mm
Concentricity tolerance: 0,005 mm
Max. workpiece weight: 200 kg
Max. rotation speed: 7000 rpm
Taper shank size: 2
Angle of the tip: 60 Degree

Manufacturer part no.: 221018

EAN no.: 4019208059587

Product Datasheet
