Zentrierspitze, MK 6, ähnlich DIN 807, volle Spitze mit Abdrückmutter

Zentrierspitze, MK 6, ähnlich DIN 807, volle Spitze mit Abdrückmutter

Zentrierspitze, MK 6, ähnlich DIN 807, volle Spitze mit Abdrückmutter
Item no: 1024117 104

Online price:

Available in 8-10 working days.

Application
For counter-clamping workpieces on lathes with tailstock mount and grinding machines.

Execution
  • Full tip
  • With draw-off nut and size
  • Made of tool steel
  • Hardened and polished centring tip
  • Concentricity deviation up to 0.005 mm
  • Tip angle 60°

Advantage
  • High wear resistance due to tool steel
  • High stiffness and load capacity as tips are manufactured from a single piece

Delivery
- Centring tip
- Draw-off nut

Notes
Versions with concentricity of 0.003 mm or better are available on request.

Brand: RÖHM

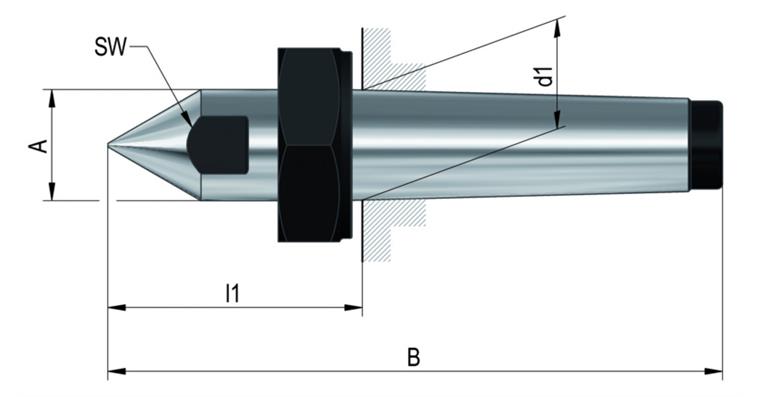

Morse taper size: MK 6
Diameter (Aufnahme-Ø d1): 63,348 mm
Overall length (Gesamtlänge B): 290 mm
Programming size (Programmiermaß l1): 108 mm
Outer diameter (Außen-Ø A): 63,8 mm
Width across flats (Schlüsselweite SW): 55 mm

Manufacturer part no.: 5426

EAN no.: 4019208000121

Product Datasheet
Versions
