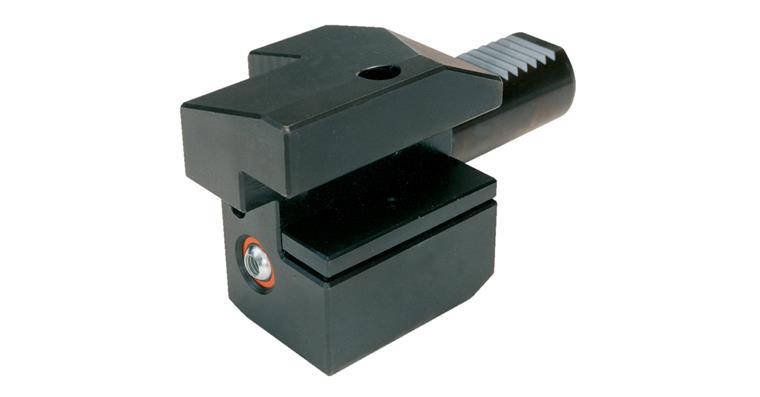

Square longitudinal mount, shank dia. 50 mm, right, shape C3, DIN 69880, part 4

Square longitudinal mount, shank dia. 50 mm, right, shape C3, DIN 69880, part 4

Square longitudinal mount, shank dia. 50 mm, right, shape C3, DIN 69880, part 4
Item no: 1021918 313

Online price:

Available in 8-10 working days.

Application
For square steel. For overhead work.

Execution
  • Type C3, axial right
  • Short design
  • 20MnCr5 hardened to 60 +/- 2 HRC
  • Completely burnished and all functional surfaces ground
  • With ball spray nozzle and threaded connector for tube fittings


Brand: LIZZARD
VDI mount diameter (VDI Aufnahmedurchmesser d): 50 mm
Form: C3 R overhead
Height (h1): 32 mm
Width (b): 100 mm
Holder width (b2): 50 mm
Width 2 (b1): 26 mm
Height 2 (h3): 60 mm
Height 3 (h4): 50 mm
Holder support length (l1): 16 mm
Length (l): 100 mm
DIN: 69880-1

EAN no.: 4024496065875

Product Datasheet
