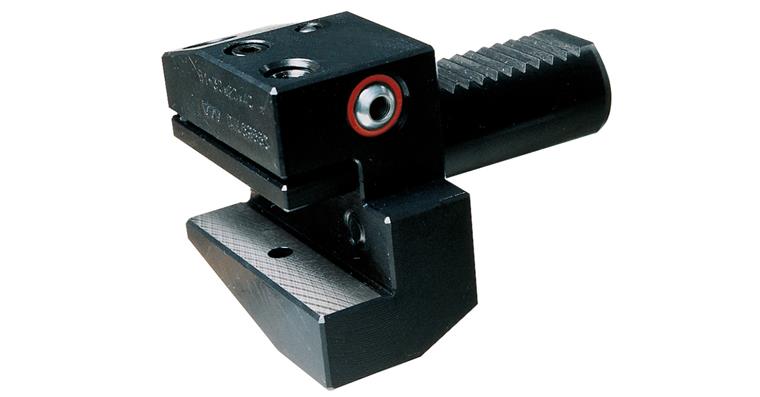

Radial tool holder, shank dia. 40 mm, short 85 mm, right, shape B1, DIN 69880

Radial tool holder, shank dia. 40 mm, short 85 mm, right, shape B1, DIN 69880

Radial tool holder, shank dia. 40 mm, short 85 mm, right, shape B1, DIN 69880
Item no: 1021903 312

Online price:

Still in stock: 2

Application
For external machining. For square steel.

Execution
  • Shape B1, radial, right-hand
  • Short design
  • 20MnCr5 hardened to 60 +/- 2 HRC
  • Full black oxide finish and all functional surfaces ground
  • With ball spray nozzle and threaded connector for tube fittings


Brand: LIZZARD
VDI mount diameter (VDI Aufnahmedurchmesser d): 40 mm
Form: B1 R
Height (h1): 25 mm
Width (b): 85 mm
Holder width (b2): 42,5 mm
Width 2 (b1): 12,5 mm
Height 2 (h3): 32,5 mm
Height 3 (h4): 48 mm
Holder support length (l1): 22 mm
Length (l): 44 mm
DIN: 69880-1

EAN no.: 4024496065509

Product Datasheet
