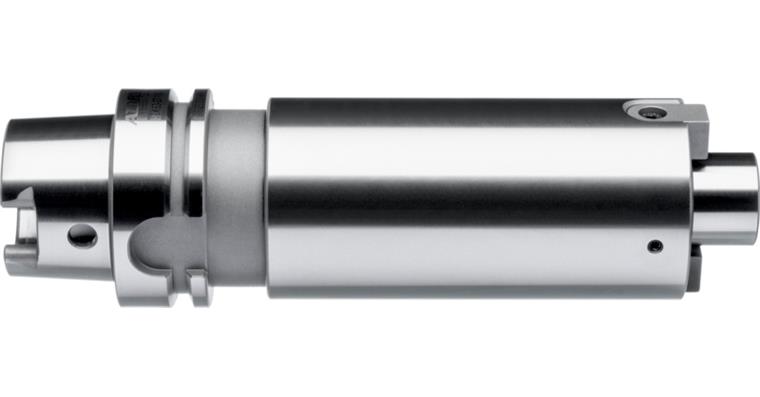

ATORN transverse drive shell end mill arbour HSK100 dia. 22 mm A=50 mm shape AD

ATORN transverse drive shell end mill arbour HSK100 dia. 22 mm A=50 mm shape AD

ATORN transverse drive shell end mill arbour HSK100 dia. 22 mm A=50 mm shape AD
Item no: 1021858 523

Online price:

Available in 8-10 working days.

Application
For accommodating shell end mills and angular milling cutters with longitudinal groove in accordance with DIN 842.

Execution
  • Alloyed case-hardening steel, core tensile strength at least 950 N/mm²
  • Internal coolant supply
  • Case-hardened HRc 60 ± 2 (HV 700 ± 50), hardness depth 0.8 mm ± 0.2 mm
  • Max. concentricity < 0.005 mm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • With Balluff chip hole

Delivery
1x HSK63 or HSK100 transverse drive shell end mill arbour (ISO 12164); with retaining screw

Notes
The previous standard DIN 69871 was superseded by ISO 12164.

Brand: ATORN
Tool holding device: HSK 100
Form: A
Mandrel diameter (d1): 22 mm
Tap length (L1): 19 mm
Projecting length (A): 50 mm
Outer diameter (D): 48 mm
Coolant supply: Internal axial
Balancing quality: G 2.5 at 25,000 rpm

ATORN-No.: 22660767

EAN no.: 4050293711820

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN collet chuck with planar contact face BT40 (ISO 7388-2) ER32 A=100 mm
    194,40 €
  • ATORN transverse drive shell end mill arbour HSK63 dia. 16 mm A=100 mm shape AD
    137,06 €
  • ATORN transverse drive shell end mill arbour HSK63 dia. 22 mm A=100 mm shape AD
    137,06 €
  • ATORN transverse drive shell end mill arbour HSK100 dia. 32 mm A=50 mm shape AD
  •
    POLINOX® non-woven abrasive synthetic corundum 60x50 mm shank dia. 6 mm grit 280
  •
    Fibre disc, ceramic abrasive grain 987C Cubitron II, dia. 115 mm, grit 36
  •
    ATORN hexagon socket 24 mm 1/2 inch DIN 3124
  •
    VDE Langbeck flat-nose pliers L=190 MC sleeve slip protect. 5745 CV elec. steel
  •
    Sicherungsringzangen-Set 4 teilig J2/J21/A2/A21 in Rolltasche
  •
    Flat grip magnet dia. 25 mm thread M4 40N hard ferrite, shielded, max. 200°C
  •
    Permanent lifting magnet TML 90 R prism, load 90 kg tear-off force 270 kg
  •

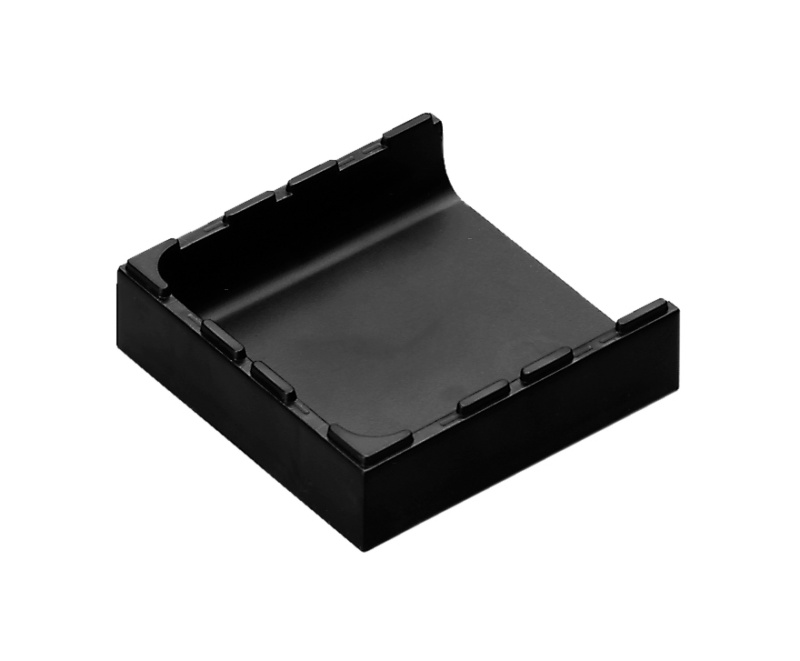

    Vario box end pieces with length adaptation ABS plastic, 1 trough 24x96x96 mm
