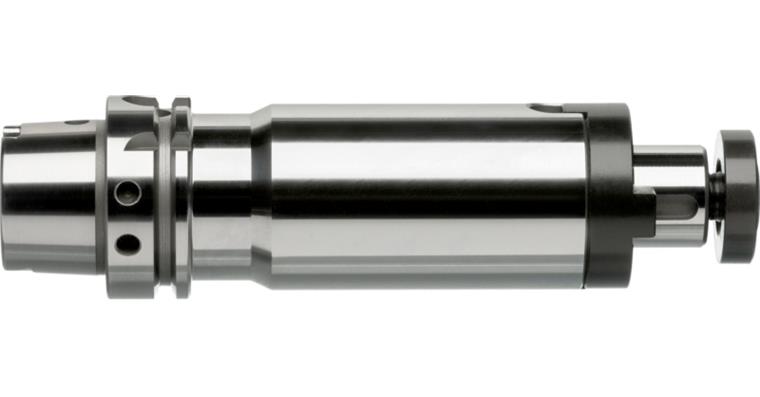

ATORN combination shell end mill arbour HSK100 (ISO 12164) dia. 27 mm A=130 mm

ATORN combination shell end mill arbour HSK100 (ISO 12164) dia. 27 mm A=130 mm

ATORN combination shell end mill arbour HSK100 (ISO 12164) dia. 27 mm A=130 mm
Item no: 1021855 235

Online price:

Available in 8-10 working days.

Application
For holding shell end mills and single angle milling cutters with longitudinal groove in accordance with DIN 842.

Execution
  • Alloyed case-hardening steel, core tensile strength at least 950 N/mm²
  • Case-hardened HRc 60 ± 2 (HV 700 ± 50), hardness depth 0.8 mm ± 0.2 mm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • All functional surfaces are machined
  • Max. concentricity < 0.005 mm
  • With Balluff chip hole
  • Internal cooling with A dimension of 160 mm and 200 mm only

Delivery
1x HSK63 or HSK100 combination shell end mill arbour (ISO 12164); incl. retaining screw, key and drive ring

Notes
The previous standard DIN 69871 was superseded by ISO 12164.

Brand: ATORN
Tool holding device: HSK 100
Form: A
Mandrel diameter (d1): 27 mm
Tap length (L1): 21 mm
Projecting length (A): 130 mm
Coolant supply: No
Balancing quality: G 2.5 at 25,000 rpm

ATORN-No.: 22660661

EAN no.: 4050293710762

Product Datasheet
