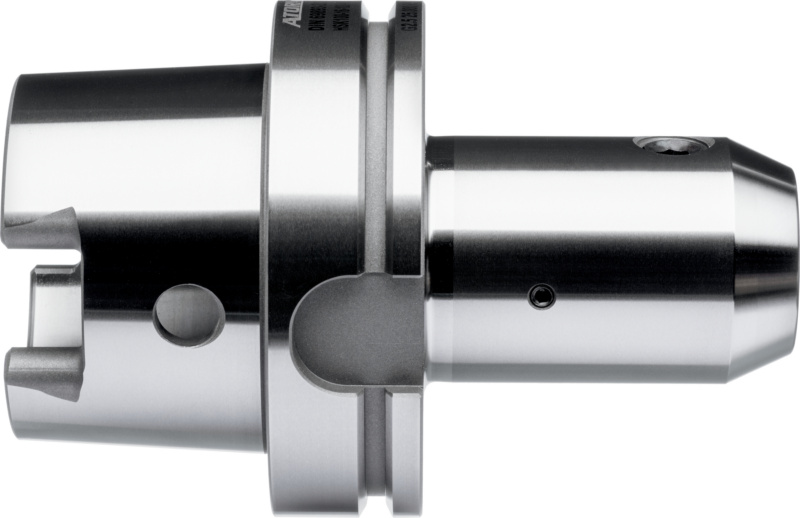

Milling cutter holder DIN 69893 fine thr. G2.5 25,000rpm HSK-A63 d=8 mm a=160 mm

Milling cutter holder DIN 69893 fine thr. G2.5 25,000rpm HSK-A63 d=8 mm a=160 mm

Milling cutter holder DIN 69893 fine thr. G2.5 25,000rpm HSK-A63 d=8 mm a=160 mm
Item no: 1021849 406

Online price:

Still in stock: 5

Application
For clamping tools with lateral driving surfaces in accordance with DIN 1835 B and DIN 6535 HB.

Execution
  • With internal cooling, design AD
  • Precision-balanced, G 2.5 - 25,000 rpm
  • With Balluff chip bore
  • Max. concentricity less than 0.005 mm

Notes
Coolant tube, see art. no. 1021864.
Key for coolant tube, see art. no. 1021865.
For spare screws, see art. no. 1021635.

Brand: HHW
Tool holding device: HSK A63
Clamping diameter (d): 8,0 mm
Projecting length (A): 160,0 mm
Outer diameter (D): 28,0 mm
Coolant supply: Internal
Balancing quality: G 2.5 at 25,000 rpm
Construction length: Long
Max. concentricity: 0,005 mm

EAN no.: 4024496064793

Product Datasheet
Additional articles

Please select a button.

Spare Parts
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN surface chuck coolant bore HSK100 (ISO 12164) dia. 32 mm A=130 mm
  •

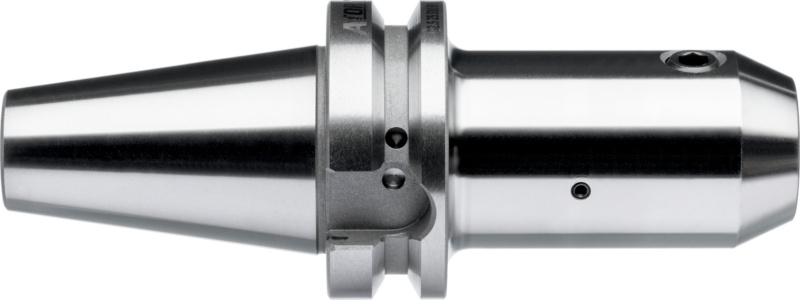

    ATORN surface chuck coolant bore BT40 (ISO 7388-2) diameter 6 mm A=200 mm
  •
