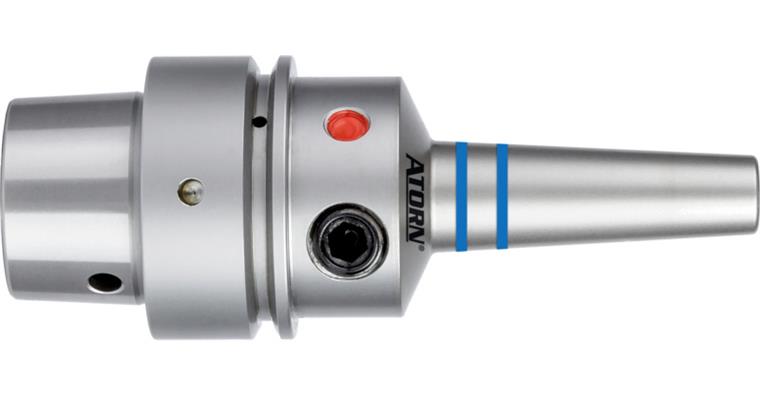

ATORN HSK-E50 hydraulic expansion chuck 3° (ISO 12164) dia. 10 mm A=80 mm

ATORN HSK-E50 hydraulic expansion chuck 3° (ISO 12164) dia. 10 mm A=80 mm

ATORN HSK-E50 hydraulic expansion chuck 3° (ISO 12164) dia. 10 mm A=80 mm
Item no: 1021847 209

Online price:

Available in 5-7 working days.

Application
Produced using an innovative process, the ultra-slim hydro expansion chuck combines the advantages of an expansion chuck and a shrink-fit chuck in a single product.

Execution
  • Extremely high clamping forces
  • Extremely high temperature resistance (up to 120 °C) ensures that the chuck retains its accuracy
  • Slim shrink-fit chuck-style design makes it suitable for narrow interference contours
  • Excellent damping properties
  • Standard tool changes as with expansion chucks without requiring additional devices
  • Reducer bushings enable various applications
  • With Balluff chip hole

Delivery
1x HSK-E40 or HSK-E50 hydraulic expansion chuck 3° (ISO 12164)

Notes
The previous standard DIN 69871 was superseded by ISO 12164.

Brand: ATORN
Tool holding device: HSK 50
Clamping diameter (d): 10 mm
Form: E
Projecting length (A): 85 mm
Tapered diameter (d2): 16 mm
Outer diameter (D): 42 mm
Clearance length to collar (l1): 39 mm
Clamp in depth (l2): 41 mm
Suitable for thread (G): M8 x 1
Width across flats: 3 mm
Max. adjustment travel (max. V): 10 mm
Coolant supply: Internal
Balancing quality: G 2.5 at 25,000 rpm

ATORN-No.: 21044972

EAN no.: 4050293433548
