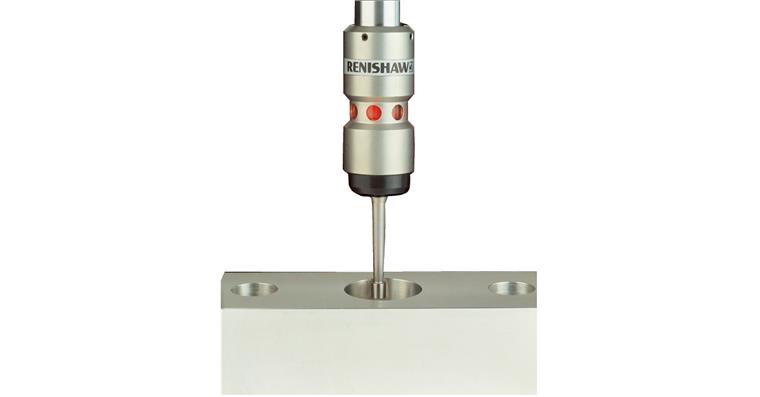

Edge finder JCP1 battery operated

Edge finder JCP1 battery operated

Edge finder JCP1 battery operated
Item no: 1021767 101

Online price:

Still in stock: 1

Application
Only conductive materials can be detected. The edge finder can be used to measure different criteria and to determine zero points of workpieces on all manual and CNC-controlled machine tools. Criteria: Measuring inside and outside, determining the bore centre point, centric to the working spindle, measuring reference edges, height and depth measurement.

Execution
  • The battery-powered edge finder is placed in the collet chuck or milling cutter mount
  • As soon as the probe insert touches a workpiece, the red lamp lights up

Notes
For replacement batteries, see art. no. 1039900.

Brand: RENISHAW
Sensor design: 3-D
Clamp in shank diameter: 20 mm
Probe head diameter: 6 mm
Housing width: 28 mm
Clamp in length (Einspannlänge L1): 52 mm
Length (Länge L): 160 mm
Sensor insert length: 40 mm
Repeat accuracy (+/-): 0,001 mm
IP protection class: IP 44

Manufacturer part no.: JCP1M

Product Datasheet
