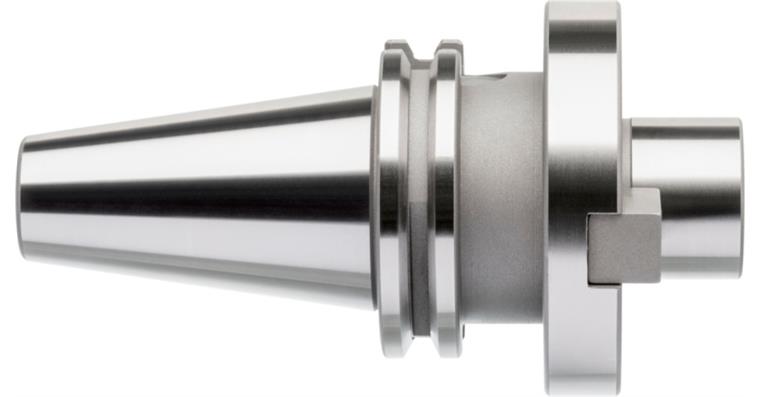

ATORN tr. milling cut. head arbour w/ planar contact face SK40 dia. 32 mm A=55mm

ATORN tr. milling cut. head arbour w/ planar contact face SK40 dia. 32 mm A=55mm

ATORN tr. milling cut. head arbour w/ planar contact face SK40 dia. 32 mm A=55mm
Item no: 1021673 003

Online price:

Available in 4-6 working days.

Application
For face milling cutter heads and milling cutters with transverse drive.

Execution
  • Pre-balanced G6.3/25,000 rpm
  • Precision version
  • External and internal cone polished
  • High concentricity

Advantage
  • Positive-locking planar contact face for increased rigidity and vibration damping
  • Extends the service life of cutting tools

Delivery
1x SK40 transverse drive shell end mill arbour (ISO 7388-1); with retaining screw

Notes
The previous standard DIN 69871-1 was superseded by ISO 7388-1.

Brand: ATORN
Tool holding device: SK 40
Form: AD
Projecting length (A): 50 mm
Outer diameter (D): 78 mm
Mandrel diameter (d1): 32 mm
Tap length (L1): 24 mm
Coolant supply: Internal
Balancing quality: G 6,3 at 25000 rpm
Concentricity tolerance: 5 µm

ATORN-No.: 21981170

EAN no.: 4050293647754

Product Datasheet
