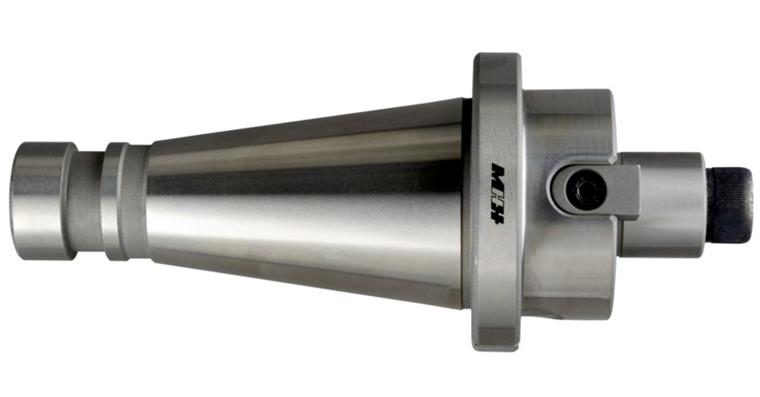

Face mill arbor DIN 2080 A f. face mill. cut. hds+cutters w trans. grve SK 50x40

Face mill arbor DIN 2080 A f. face mill. cut. hds+cutters w trans. grve SK 50x40

Face mill arbor DIN 2080 A f. face mill. cut. hds+cutters w trans. grve SK 50x40
Item no: 1021670 405

Online price:

Available in 8-10 working days.

Application
For face milling blade heads and cutters with lateral grooves.

Execution
  • Precision version with enlarged and face-ground contact surfaces
  • Short overhang for greater stability
  • Art. nos. 1021670 308+405: also with 4 threaded holes

Delivery
Includes retaining screw.

Notes
For retaining screw key, see art. no. 1021657.

Brand: LIZZARD
Standard shank design: DIN 2080
Tool holding device: SK 50
Mandrel diameter (d): 40,0 mm
Tap length (l): 27,0 mm
Projecting length (A): 33,0 mm
DIN: 2080
Outer diameter (D): 88,0 mm
Balancing quality: G 6,3 at 7000 rpm
Construction length: Short
Coolant supply: External
Max. concentricity: 0,005 mm
Tightening thread: M24

EAN no.: 4024496063789

Product Datasheet
