ATORN high-perfor. hydraulic expansion chuck BT40 dia. 20 mm A=72.5 mm case set

ATORN high-perfor. hydraulic expansion chuck BT40 dia. 20 mm A=72.5 mm case set

ATORN high-perfor. hydraulic expansion chuck BT40 dia. 20 mm A=72.5 mm case set
Item no: 1021654 123

Online price:

Available in 5-7 working days.

Application
For high-precision and centric clamping of milling, drilling and reaming tools – particularly with milling and heavy-duty machining during rough machining.

Execution
  • Concentricity tolerance < 0.003 mm
  • With axial longitudinal adjustment
  • Reducing sleeves for flexible application
  • Very high concentricity (< 3 µm)
  • Coolant pressure up to 80 bar
  • Temperature-resistant up to 100 °C

Advantage
  • Robust version ideal for HPC+HSC machining
  • Damping properties to increase service life of tool and machine spindle
  • Very high torque transfer (dia. 20 = 650 Nm)
  • All standard shanks can be clamped (dia. tolerance h6)
  • Vibration-damping effect reduces micro-cracks and improves the workpiece surface

Delivery
1x high-performance BT40 hydraulic expansion chuck (ISO 7388-2) in case set incl. reducing sleeves

Notes
The previous standard JIS B 6339 MAS BT was superseded by ISO 7388-2.

Brand: ATORN
Tool holding device: BT 40
Clamping diameter (d): 20 mm
Projecting length (A): 72,5 mm
Outer diameter (D): 49 mm
Clamp in depth (l2): 51 mm
Max. adjustment travel (V): 10 mm
Form: JD/JF
Coolant supply: Internal axial
Concentricity tolerance: 0,003 mm
Balancing quality: G 6,3 at 25000 rpm

ATORN-No.: 21044990

EAN no.: 4050293433722

Product Datasheet
Keywords:

You might also be interested in this

  • Multi-step drill bit DIN 8377 Type N MK HSS ground 180° M12, 13.5 x 20 mm
  •
    Multi-step drill bit DIN 8377 Type N MK HSS ground 180° M10, 9 x 15.0 mm
  •
    Twist drill bit HSS-E-Co8 AG-coated DIN 339 118° tip angle 10xD dia. 5.5 mm
  •
    Multi-step drill bit DIN 8377 Type N MK HSS ground 180° M20, 22 x 33.0 mm
  •
    KNIPEX Ersatzmesser beweglich für 95 31 280 / 95 36 280
  •
    ATORN SC miniature ball nose end mill diameter 1.5x2x5x55 mm T2 HA 3 ULTRA DC
  •
    Oil-saving container with swivel bracket and 2 brushes, contents 500 ml
  •
    Twist drill bit HSS-E-Co8 AG-coated DIN 339 118° tip angle 10xD dia. 9.6 mm
  •
    Jacket IconiQ cornflower blue/black sz. 3XL
  •
    Kegel- und Entgratsenker 90° mit Zylinderschaft DIN 335 3 Schn. HSS Ø 4,3 mm
  •

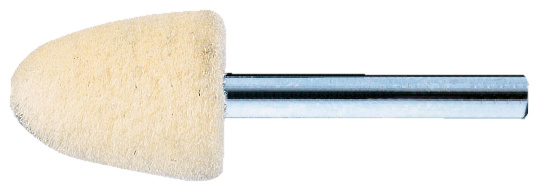

    Felt polishing point round taper shank dia. 6mm head dia. x length 25x30mm
  •
