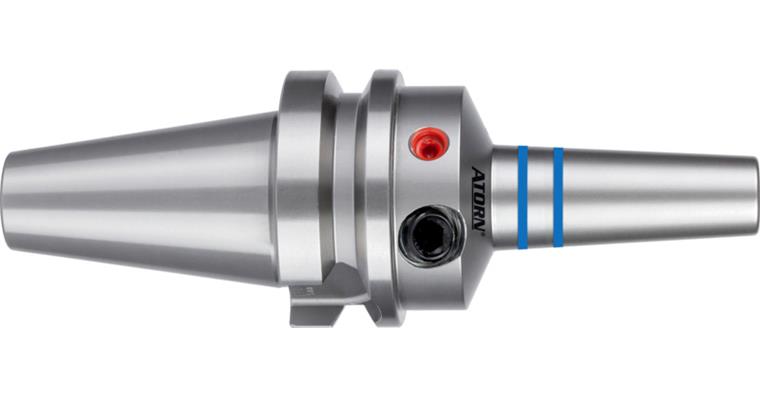

ATORN ultra-slim BT30 hydraulic exp. chuck (ISO 7388-2) dia. 10 mm A=85 mm, IC

ATORN ultra-slim BT30 hydraulic exp. chuck (ISO 7388-2) dia. 10 mm A=85 mm, IC

ATORN ultra-slim BT30 hydraulic exp. chuck (ISO 7388-2) dia. 10 mm A=85 mm, IC
Item no: 1021654 121

Online price:

Available in 5-7 working days.

Application
Produced using an innovative process, the ultra-slim hydro expansion chuck combines the advantages of an expansion chuck and a shrink-fit chuck in a single product.

Execution
  • Extremely high clamping forces
  • Extremely high temperature resistance (up to 120 °C) ensures that the chuck retains its accuracy
  • Slim shrink-fit chuck-style design makes it suitable for narrow interference contours
  • Excellent damping properties
  • Max. concentricity < 0.003 mm
  • Standard tool changes as with expansion chucks without requiring additional devices
  • Reducer bushings enable various applications
  • Pre-balanced to G2.5/25,000 rpm

Delivery
1x ultra-slim BT30 hydraulic expansion chuck (ISO 7388-2) with internal cooling

Notes
The previous standard JIS B 6339 MAS BT was replaced by ISO 7388-2.

Brand: ATORN
Tool holding device: BT 30
Clamping diameter (d): 10 mm
Projecting length (A): 85 mm
Tapered diameter (d2): 18 mm
Outer diameter (D): 40 mm
Clamp in depth (l2): 41 mm
Clearance length to collar (l3): 47 mm
Max. adjustment travel (V): 10 mm
Form: JD/JF
Thread dimension (G): M8 x 1
Coolant supply: Internal axial
Concentricity tolerance: 0,003 mm
Balancing quality: G 2.5 at 25,000 rpm

ATORN-No.: 21044986

EAN no.: 4050293433685
