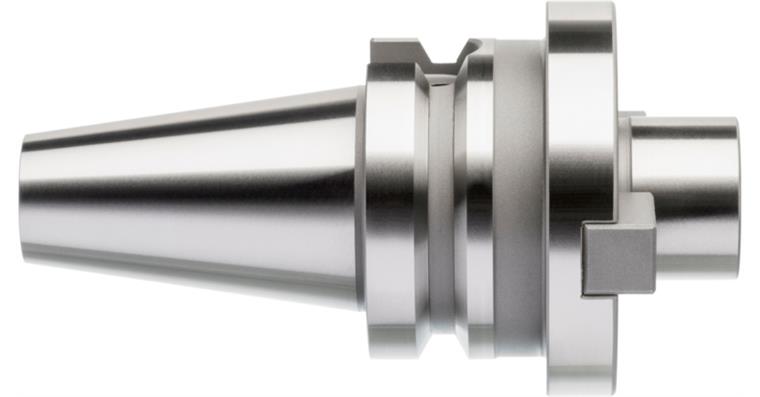

ATORN tr. milling cut. head arbour w/ planar contact face BT50 dia. 32 mm A=50mm

ATORN tr. milling cut. head arbour w/ planar contact face BT50 dia. 32 mm A=50mm

ATORN tr. milling cut. head arbour w/ planar contact face BT50 dia. 32 mm A=50mm
Item no: 1021652 010

Online price:

Still in stock: 1

Application
For face milling cutter heads and milling cutters with transverse drive.

Execution
  • Pre-balanced G6.3/25,000 rpm
  • Precision version
  • External and internal cone polished
  • High concentricity

Advantage
  • Positive-locking planar contact face for increased rigidity and vibration damping
  • Extends the service life of cutting tools

Delivery
1x BT40 transverse drive shell end mill arbour (ISO 7388-2); with retaining screw

Notes
The previous standard JIS B 6339 MAS BT was superseded by ISO 7388-2.

Brand: ATORN
Tool holding device: BT 50
Form: JD
Outer diameter (D): 78 mm
Mandrel diameter (d1): 32 mm
Tap length (L1): 24 mm
Coolant supply: Internal
Balancing quality: G 6,3 at 25000 rpm
Concentricity tolerance: 5 µm

ATORN-No.: 21981185

EAN no.: 4050293647907

Product Datasheet
