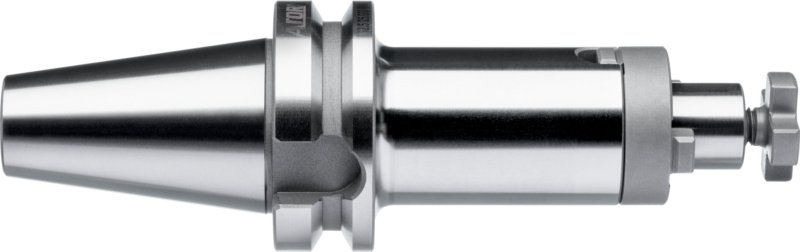

ATORN SK50 surface chuck (ISO 7388-1), dia. 6 mm, A=100 mm

ATORN SK50 surface chuck (ISO 7388-1), dia. 6 mm, A=100 mm

ATORN SK50 surface chuck (ISO 7388-1), dia. 6 mm, A=100 mm
Item no: 1021632 255

Online price:

Available in 8-10 working days.

Application
For clamping tools with straight shank and clamping surface in accordance with DIN 1835 B.

Execution
  • Alloyed case-hardening steel, core tensile strength at least 950 N/mm²
  • Case-hardened HRc 60 ± 2 (HV 700 ± 50), hardness depth 0.8 mm ± 0.2 mm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • Max. concentricity < 0.005 mm
  • Functional surfaces precision-ground, all other surfaces black-oxide
  • With Balluff chip hole

Delivery
1x SK40 or SK50 surface chuck (Weldon) (ISO 7388-1)

Notes
The previous standard DIN 69871-1 was superseded by ISO 7388-1.

Brand: ATORN
Tool holding device: SK 50
Clamping diameter (d): 6 mm
Projecting length (A): 100 mm
Outer diameter (D): 25 mm
Clearance length to collar (L): 81 mm
Length 2 (L1): 18 mm
Coolant supply: Internal axial
Balancing quality: G 2.5 at 25,000 rpm
Form: AD

ATORN-No.: 22660236

EAN no.: 4050293706512

Product Datasheet
