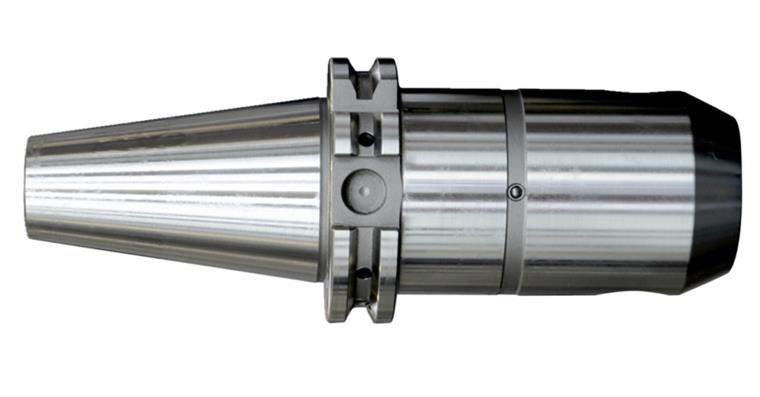

Milling cutter holder medium with CCB DIN 69871 AD/B SK40 20 x 100 mm

Milling cutter holder medium with CCB DIN 69871 AD/B SK40 20 x 100 mm

Milling cutter holder medium with CCB DIN 69871 AD/B SK40 20 x 100 mm
Item no: 1021621 207

Online price:

Available in 6-8 working days.

Execution
  • Hard-turned shank
  • With Balluff chip hole
  • With two coolant channel bores (= KKB)
  • With clamping screw and 2 x M3 screws to seal the hole if necessary


Brand: ---
Tool holding device: SK 40
Construction length: Medium
Clamping diameter (d): 20,0 mm
Projecting length (A): 100,0 mm
Outer diameter (D): 52,0 mm
Clearance length to collar (L): 53,0 mm
Coolant supply: KKB
Surface: Uncoated
Balancing quality: G 2.5 at 25,000 rpm
Form: AD/AF
Thread dimension (g / G): M16
DIN: 69871-1
Concentricity tolerance: 0,003 mm
Standard shank design: DIN 69871-1 AD/B
Tightening thread: M16

EAN no.: 4024496060672
