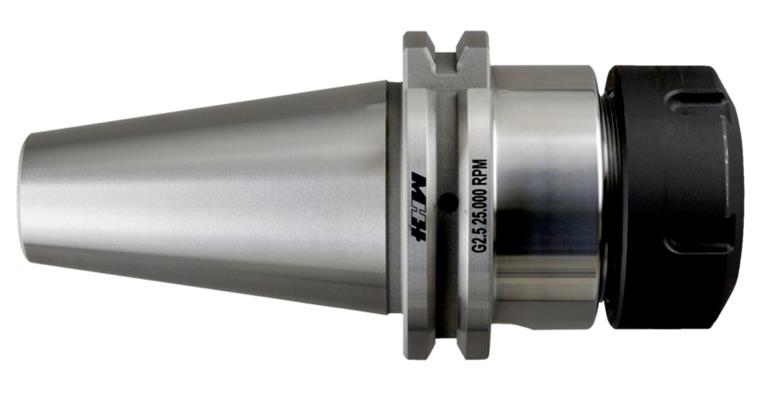

Collet chuck DIN 69871 ER25/430 E SK40 fine thread G2.5 25,000 rpm with ICS

Collet chuck DIN 69871 ER25/430 E SK40 fine thread G2.5 25,000 rpm with ICS

Collet chuck DIN 69871 ER25/430 E SK40 fine thread G2.5 25,000 rpm with ICS
Item no: 1021512 207

Online price:

Available for immediate delivery

Application
For clamping tools with straight shanks in collet chucks, DIN 6499 shape A and B.

Execution
  • Precision design
  • Precision-balanced, G 2.5 - 25,000 rpm
  • Ground external taper and internal cone
  • Max. concentricity less than 0.005 mm

Notes
For collet chuck sets, see art. no. 1021519.
For collet chucks, see art. no. 1021520-1021525 and 1021534-1021539. For pull studs, see art. no. 1021733-1021740.
For spanners, see art. no. 1021532.

Brand: HHW
Tool holding device: SK 40
Collet type: ER 25 (430 E)
Min./max. clamping range: 2.0-16.0 mm
Projecting length (A): 60,0 mm
Outer diameter (D): 42,0 mm
Clamping nut type: ER 25
DIN: 69871-1
Construction length: Short
Standard shank design: DIN 69871-1 AD
Tightening thread: M16

EAN no.: 4024496056293

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • ATORN solid carbide end mill Z2 HA shaft diameter 3.0 x 8 x 57 mm
  •
    Collet chuck DIN 69871 ER32/470 E SK40 fine thread G2.5 25,000 rpm with ICS
  •
    Collet chuck DIN 69871 ER16/426 E SK40 fine thread G2.5 25,000 rpm with ICS
  •

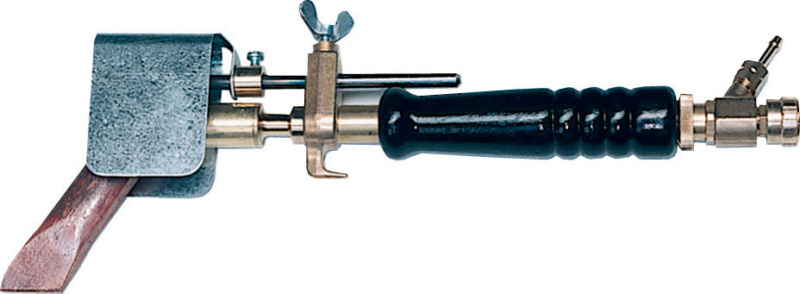

    Propane soldering iron brass complete with soft solder insert connection 3/8in
  •
